Represents an RGBA colour. More...

#include <Colour.hpp>

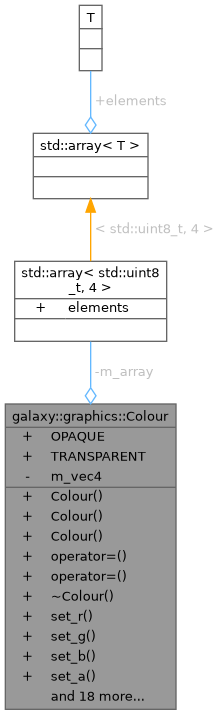

Collaboration diagram for galaxy::graphics::Colour:

Public Member Functions
	Colour ()
	Constructor.

	Colour (Colour &&)
	Move constructor.

	Colour (const Colour &)
	Copy constructor.

Colour &	operator= (Colour &&)
	Move assignment operator.

Colour &	operator= (const Colour &)
	Copy assignment operator.

	~Colour ()
	Destructor.

void	set_r (const std::uint8_t r)
	Red.

void	set_g (const std::uint8_t g)
	Green.

void	set_b (const std::uint8_t b)
	Blue.

void	set_a (const std::uint8_t a)
	Alpha.

template<typename R > requires std::is_same_v<std::uint8_t, R> \|\| std::is_same_v<float, R>
R	r () const
	Get red.

template<typename G > requires std::is_same_v<std::uint8_t, G> \|\| std::is_same_v<float, G>
G	g () const
	Get green.

template<typename B > requires std::is_same_v<std::uint8_t, B> \|\| std::is_same_v<float, B>
B	b () const
	Get blue.

template<typename A > requires std::is_same_v<std::uint8_t, A> \|\| std::is_same_v<float, A>
A	a () const
	Get alpha.

void	set_rgba (const glm::vec4 &rgba)
	Set RGBA.

std::array< std::uint8_t, 4 > &	array ()
	Get integer array.

glm::vec4 &	vec4 ()
	Get vec4.

const std::array< std::uint8_t, 4 > &	array () const
	Get const integer array.

const glm::vec4 &	vec4 () const
	Get const vec4.

auto	operator<=> (const Colour &) const =default
	Comparison operator.

template<>
float	r () const

template<>
std::uint8_t	r () const

template<>
float	g () const

template<>
std::uint8_t	g () const

template<>
float	b () const

template<>
std::uint8_t	b () const

template<>
float	a () const

template<>
std::uint8_t	a () const

Static Public Attributes
static const constexpr std::uint8_t	OPAQUE = 255
	Opaque colour.

static const constexpr std::uint8_t	TRANSPARENT = 0
	Transparent colour.

Private Attributes
std::array< std::uint8_t, 4 >	m_array
	r,g,b,a = 0,1,2,3.

glm::vec4	m_vec4
	r,g,b,a = x,y,z,w.

Detailed Description

Represents an RGBA colour.

Definition at line 26 of file Colour.hpp.

Constructor & Destructor Documentation

◆ Colour() [1/3]

galaxy::graphics::Colour::Colour ( )

Constructor.

Definition at line 24 of file Colour.cpp.

◆ Colour() [2/3]

galaxy::graphics::Colour::Colour ( Colour && c )

Move constructor.

Definition at line 30 of file Colour.cpp.

◆ Colour() [3/3]

galaxy::graphics::Colour::Colour ( const Colour & c )

Copy constructor.

Definition at line 36 of file Colour.cpp.

◆ ~Colour()

galaxy::graphics::Colour::~Colour ( )

Destructor.

Definition at line 64 of file Colour.cpp.

Member Function Documentation

◆ operator=() [1/2]

Colour & galaxy::graphics::Colour::operator= ( Colour && c )

Move assignment operator.

Definition at line 42 of file Colour.cpp.

◆ operator=() [2/2]

Colour & galaxy::graphics::Colour::operator= ( const Colour & c )

Copy assignment operator.

Definition at line 53 of file Colour.cpp.

◆ set_r()

void galaxy::graphics::Colour::set_r ( const std::uint8_t r )

Red.

Parameters

r 0 - 255.

Definition at line 68 of file Colour.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_g()

void galaxy::graphics::Colour::set_g ( const std::uint8_t g )

Green.

Parameters

g 0 - 255.

Definition at line 86 of file Colour.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_b()

void galaxy::graphics::Colour::set_b ( const std::uint8_t b )

Blue.

Parameters

b 0 - 255.

Definition at line 104 of file Colour.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_a()

void galaxy::graphics::Colour::set_a ( const std::uint8_t a )

Alpha.

Parameters

a 0 - 255.

Definition at line 122 of file Colour.cpp.

Here is the call graph for this function:

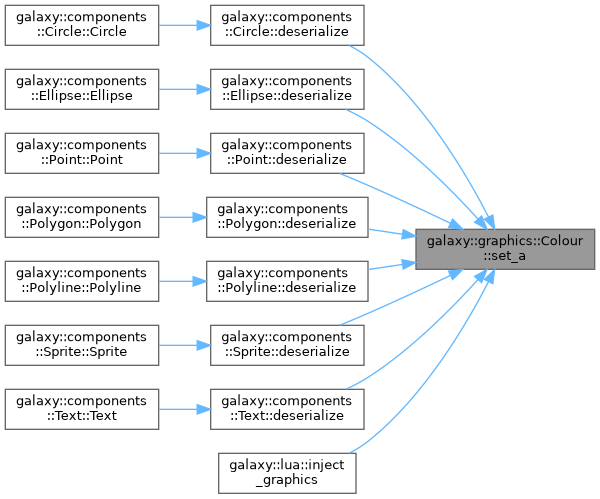

Here is the caller graph for this function:

◆ r() [1/3]

template<typename R >
requires std::is_same_v<std::uint8_t, R> || std::is_same_v<float, R>

R galaxy::graphics::Colour::r ( ) const

Get red.

Template Parameters

R	Determines return value.

Returns: Int for 0 - 255, Float for 0 - 1.

Here is the caller graph for this function:

◆ g() [1/3]

template<typename G >
requires std::is_same_v<std::uint8_t, G> || std::is_same_v<float, G>

G galaxy::graphics::Colour::g ( ) const

Get green.

Template Parameters

G	Determines return value.

Returns: Int for 0 - 255, Float for 0 - 1.

Here is the caller graph for this function:

◆ b() [1/3]

template<typename B >
requires std::is_same_v<std::uint8_t, B> || std::is_same_v<float, B>

B galaxy::graphics::Colour::b ( ) const

Get blue.

Template Parameters

B	Determines return value.

Returns: Int for 0 - 255, Float for 0 - 1.

Here is the caller graph for this function:

◆ a() [1/3]

template<typename A >
requires std::is_same_v<std::uint8_t, A> || std::is_same_v<float, A>

A galaxy::graphics::Colour::a ( ) const

Get alpha.

Template Parameters

A	Determines return value.

Returns: Int for 0 - 255, Float for 0 - 1.

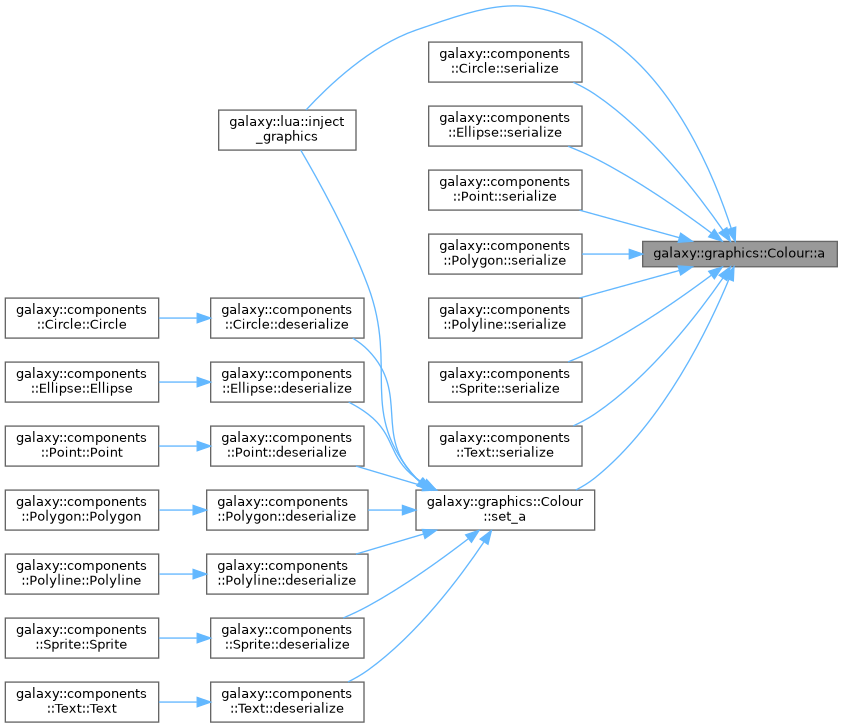

Here is the caller graph for this function:

◆ set_rgba()

void galaxy::graphics::Colour::set_rgba ( const glm::vec4 & rgba )

Set RGBA.

Parameters

rgba	Clamps from 0 to 1.

Definition at line 140 of file Colour.cpp.

Here is the caller graph for this function:

◆ array() [1/2]

std::array< std::uint8_t, 4 > & galaxy::graphics::Colour::array ( )

nodiscard

Get integer array.

Returns: Integers 0 - 255.

Definition at line 155 of file Colour.cpp.

◆ vec4() [1/2]

glm::vec4 & galaxy::graphics::Colour::vec4 ( )

nodiscard

Get vec4.

Returns: Floats 0 - 1.

Definition at line 160 of file Colour.cpp.

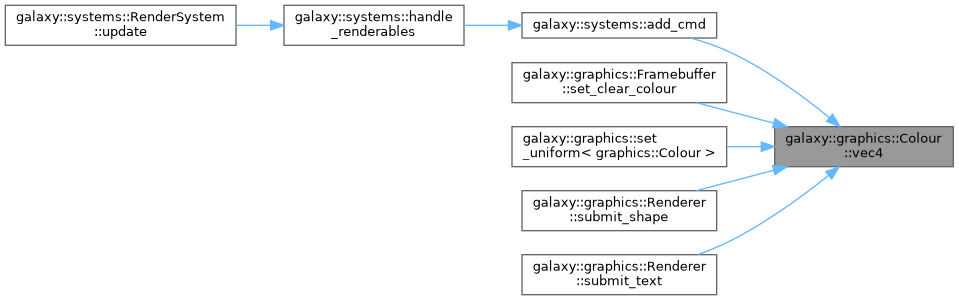

Here is the caller graph for this function:

◆ array() [2/2]

const std::array< std::uint8_t, 4 > & galaxy::graphics::Colour::array ( ) const

nodiscard

Get const integer array.

Returns: Integers 0 - 255.

Definition at line 165 of file Colour.cpp.

◆ vec4() [2/2]

const glm::vec4 & galaxy::graphics::Colour::vec4 ( ) const

nodiscard

Get const vec4.

Returns: Floats 0 - 1.

Definition at line 170 of file Colour.cpp.

◆ operator<=>()

auto galaxy::graphics::Colour::operator<=> ( const Colour & ) const

nodiscarddefault

Comparison operator.

◆ r() [2/3]

template<>

float galaxy::graphics::Colour::r ( ) const

inline

Definition at line 200 of file Colour.hpp.

◆ r() [3/3]

template<>

std::uint8_t galaxy::graphics::Colour::r ( ) const

inline

Definition at line 206 of file Colour.hpp.

◆ g() [2/3]

template<>

float galaxy::graphics::Colour::g ( ) const

inline

Definition at line 212 of file Colour.hpp.

◆ g() [3/3]

template<>

std::uint8_t galaxy::graphics::Colour::g ( ) const

inline

Definition at line 218 of file Colour.hpp.

◆ b() [2/3]

template<>

float galaxy::graphics::Colour::b ( ) const

inline

Definition at line 224 of file Colour.hpp.

◆ b() [3/3]

template<>

std::uint8_t galaxy::graphics::Colour::b ( ) const

inline

Definition at line 230 of file Colour.hpp.

◆ a() [2/3]

template<>

float galaxy::graphics::Colour::a ( ) const

inline

Definition at line 236 of file Colour.hpp.

◆ a() [3/3]

template<>

std::uint8_t galaxy::graphics::Colour::a ( ) const

inline

Definition at line 242 of file Colour.hpp.

Member Data Documentation

◆ OPAQUE

const constexpr std::uint8_t galaxy::graphics::Colour::OPAQUE = 255

inlinestaticconstexpr

Opaque colour.

Definition at line 32 of file Colour.hpp.

◆ TRANSPARENT

const constexpr std::uint8_t galaxy::graphics::Colour::TRANSPARENT = 0

inlinestaticconstexpr

Transparent colour.

Definition at line 37 of file Colour.hpp.

◆ m_array

std::array<std::uint8_t, 4> galaxy::graphics::Colour::m_array

private

r,g,b,a = 0,1,2,3.

Definition at line 191 of file Colour.hpp.

◆ m_vec4

glm::vec4 galaxy::graphics::Colour::m_vec4

private

r,g,b,a = x,y,z,w.

Definition at line 196 of file Colour.hpp.

The documentation for this class was generated from the following files:

galaxy/src/galaxy/graphics/Colour.hpp
galaxy/src/galaxy/graphics/Colour.cpp
