galaxy::State Class Reference

A state to use in a finite state machine. More...

#include <State.hpp>

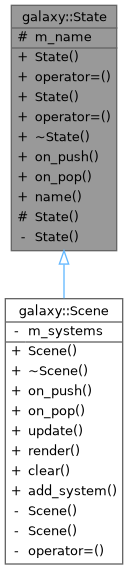

Inheritance diagram for galaxy::State:

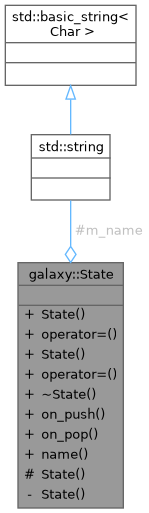

Collaboration diagram for galaxy::State:

Public Member Functions
	State (State &&)=default
	Move constructor.
State &	operator= (State &&)=default
	Move assignment operator.
	State (const State &)=default
	Copy constructor.
State &	operator= (const State &)=default
	Copy assignment operator.
virtual	~State ()=default
	Virtual destructor.
virtual void	on_push ()=0
	Triggered when state is pushed onto the stack.
virtual void	on_pop ()=0
	Triggered when state is popped off the stack.
const std::string &	name () const noexcept
	Get state name.

Protected Member Functions
	State (const std::string &name) noexcept
	Name constructor.

Protected Attributes
std::string	m_name
	Name for debug purposes.

Private Member Functions
	State ()=delete
	Constructor.

Detailed Description

A state to use in a finite state machine.

Definition at line 18 of file State.hpp.

Constructor & Destructor Documentation

State() [1/4]

galaxy::State::State ( State && )

default

Move constructor.

Here is the call graph for this function:

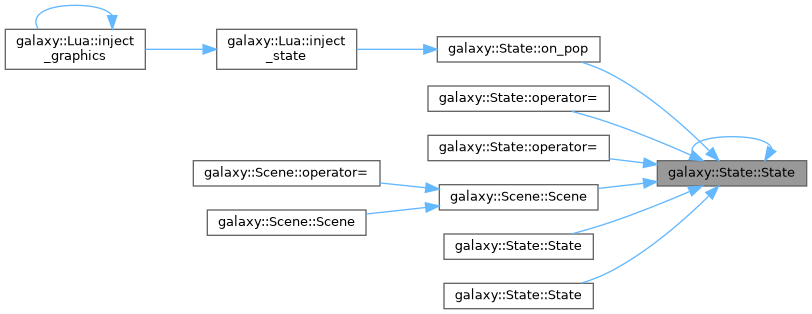

Here is the caller graph for this function:

State() [2/4]

galaxy::State::State ( const State & )

default

Copy constructor.

Here is the call graph for this function:

~State()

virtual galaxy::State::~State ( )

virtualdefault

Virtual destructor.

State() [3/4]

galaxy::State::State ( const std::string & name )

protectednoexcept

Name constructor.

Parameters

name	Name of the scene for debug / editor purposes.

Definition at line 12 of file State.cpp.

Here is the call graph for this function:

State() [4/4]

galaxy::State::State ( )

privatedelete

Constructor.

Here is the call graph for this function:

Member Function Documentation

operator=() [1/2]

State & galaxy::State::operator= ( State && )

default

Move assignment operator.

Here is the call graph for this function:

operator=() [2/2]

State & galaxy::State::operator= ( const State & )

default

Copy assignment operator.

Here is the call graph for this function:

on_push()

virtual void galaxy::State::on_push ( )

pure virtual

Triggered when state is pushed onto the stack.

Implemented in galaxy::Scene.

Here is the caller graph for this function:

on_pop()

virtual void galaxy::State::on_pop ( )

pure virtual

Triggered when state is popped off the stack.

Implemented in galaxy::Scene.

Here is the call graph for this function:

Here is the caller graph for this function:

name()

const std::string & galaxy::State::name ( ) const

nodiscardnoexcept

Get state name.

Returns

Const string.

Definition at line 17 of file State.cpp.

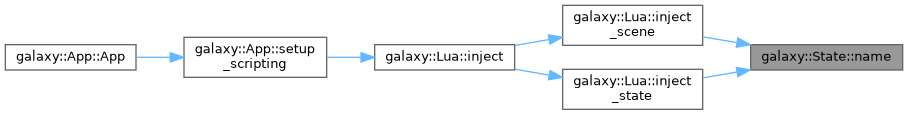

Here is the caller graph for this function:

Member Data Documentation

m_name

std::string galaxy::State::m_name

protected

Name for debug purposes.

Definition at line 76 of file State.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/state/State.hpp
• galaxy/src/galaxy/state/State.cpp
