galaxy::graphics::Shader Class Reference

OpenGL Shader Program. More...

#include <Shader.hpp>

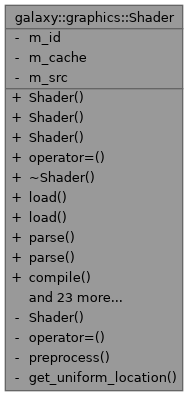

Collaboration diagram for galaxy::graphics::Shader:

Public Member Functions
	Shader ()
	Constructor.
	Shader (const nlohmann::json &json)
	JSON Constructor.
	Shader (Shader &&)
	Move constructor.
Shader &	operator= (Shader &&)
	Move assignment operator.
	~Shader ()
	Destructor.
bool	load (const std::string &file)
	Loads a combined shader.
bool	load (const std::string &vertex, const std::string &frag)
	Loads an OpenGL shader.
bool	parse (const std::string &src)
	Loads a combined raw shader.
bool	parse (const std::string &vertex, const std::string &frag)
	Loads a raw shader.
void	compile ()
	Compiles shader into GPU mem.
void	destroy ()
	Destroys shader program.
void	bind () const
	Make active shader.
void	unbind () const
	Unbind.
template<typename... Uniforms>
void	set_uniform (const std::string &name, const Uniforms &... args)
	Specialized variadic template for setting shader uniforms.
unsigned int	id () const
	Get program id.
template<>
void	set_uniform (const std::string &name)
template<>
void	set_uniform (const std::string &name, const bool &a)
template<>
void	set_uniform (const std::string &name, const int &a)
template<>
void	set_uniform (const std::string &name, const int &a, const int &b)
template<>
void	set_uniform (const std::string &name, const int &a, const int &b, const int &c)
template<>
void	set_uniform (const std::string &name, const int &a, const int &b, const int &c, const int &d)
template<>
void	set_uniform (const std::string &name, const unsigned int &a)
template<>
void	set_uniform (const std::string &name, const unsigned int &a, const unsigned int &b)
template<>
void	set_uniform (const std::string &name, const unsigned int &a, const unsigned int &b, const unsigned int &c)
template<>
void	set_uniform (const std::string &name, const unsigned int &a, const unsigned int &b, const unsigned int &c, const unsigned int &d)
template<>
void	set_uniform (const std::string &name, const float &a)
template<>
void	set_uniform (const std::string &name, const float &a, const float &b)
template<>
void	set_uniform (const std::string &name, const float &a, const float &b, const float &c)
template<>
void	set_uniform (const std::string &name, const float &a, const float &b, const float &c, const float &d)
template<>
void	set_uniform (const std::string &name, const double &a)
template<>
void	set_uniform (const std::string &name, const double &a, const double &b)
template<>
void	set_uniform (const std::string &name, const double &a, const double &b, const double &c)
template<>
void	set_uniform (const std::string &name, const double &a, const double &b, const double &c, const double &d)

Private Member Functions
	Shader (const Shader &)=delete
	Copy constructor.
Shader &	operator= (const Shader &)=delete
	Copy assignment operator.
bool	preprocess (const std::string &src)
	Extract source code from a combined shader.
int	get_uniform_location (const std::string &name)
	Retrieves the location of a shader uniform.

Private Attributes
unsigned int	m_id
	OpenGL handle.
ankerl::unordered_dense::map< std::string, int >	m_cache
	Cache of uniforms for better performance.
entt::compressed_pair< std::string, std::string >	m_src
	Shader source code.

Detailed Description

OpenGL Shader Program.

Currently only supports vertex and fragment shaders.

Definition at line 28 of file Shader.hpp.

Constructor & Destructor Documentation

Shader() [1/4]

galaxy::graphics::Shader::Shader

(

)

Constructor.

Definition at line 26 of file Shader.cpp.

Shader() [2/4]

galaxy::graphics::Shader::Shader

(

const nlohmann::json &

json

)

JSON Constructor.

Parameters

json	JSON defining object.

Definition at line 31 of file Shader.cpp.

Here is the call graph for this function:

Shader() [3/4]

galaxy::graphics::Shader::Shader

(

Shader &&

s

)

Move constructor.

Definition at line 44 of file Shader.cpp.

~Shader()

galaxy::graphics::Shader::~Shader

(

)

Destructor.

Definition at line 77 of file Shader.cpp.

Here is the call graph for this function:

Shader() [4/4]

galaxy::graphics::Shader::Shader ( const Shader & )

privatedelete

Copy constructor.

Member Function Documentation

operator=() [1/2]

Shader & galaxy::graphics::Shader::operator=

(

Shader &&

s

)

Move assignment operator.

Definition at line 58 of file Shader.cpp.

load() [1/2]

bool galaxy::graphics::Shader::load ( const std::string & file )

nodiscard

Loads a combined shader.

Parameters

file	Path to a combined shader source.

Returns

True if successful.

Definition at line 82 of file Shader.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

load() [2/2]

bool galaxy::graphics::Shader::load ( const std::string & vertex, const std::string & frag )

nodiscard

Loads an OpenGL shader.

Parameters

vertex	Vertex shader.
frag	Fragment shader.

Returns

True if successful.

Definition at line 90 of file Shader.cpp.

Here is the call graph for this function:

parse() [1/2]

bool galaxy::graphics::Shader::parse ( const std::string & src )

nodiscard

Loads a combined raw shader.

Parameters

src	Raw shader code.

Returns

True if successful.

Definition at line 100 of file Shader.cpp.

Here is the call graph for this function:

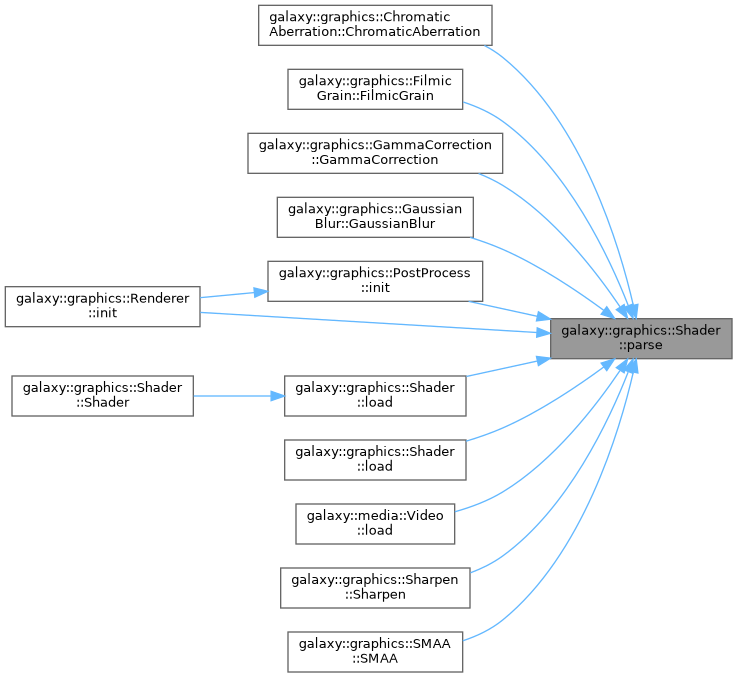

Here is the caller graph for this function:

parse() [2/2]

bool galaxy::graphics::Shader::parse ( const std::string & vertex, const std::string & frag )

nodiscard

Loads a raw shader.

Parameters

vertex	Raw vertex shader code.
frag	Raw fragment shader code.

Returns

True if successful.

Definition at line 105 of file Shader.cpp.

compile()

void galaxy::graphics::Shader::compile

(

)

Compiles shader into GPU mem.

Definition at line 130 of file Shader.cpp.

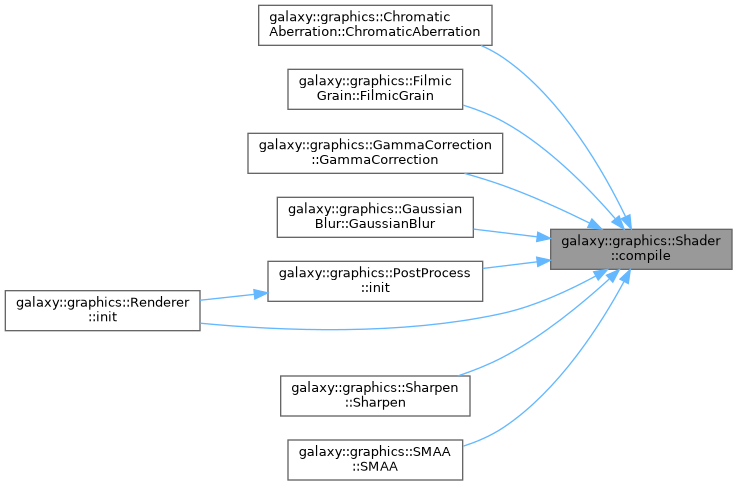

Here is the caller graph for this function:

destroy()

void galaxy::graphics::Shader::destroy

(

)

Destroys shader program.

Definition at line 219 of file Shader.cpp.

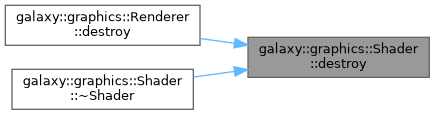

Here is the caller graph for this function:

bind()

void galaxy::graphics::Shader::bind

(

)

const

Make active shader.

Definition at line 227 of file Shader.cpp.

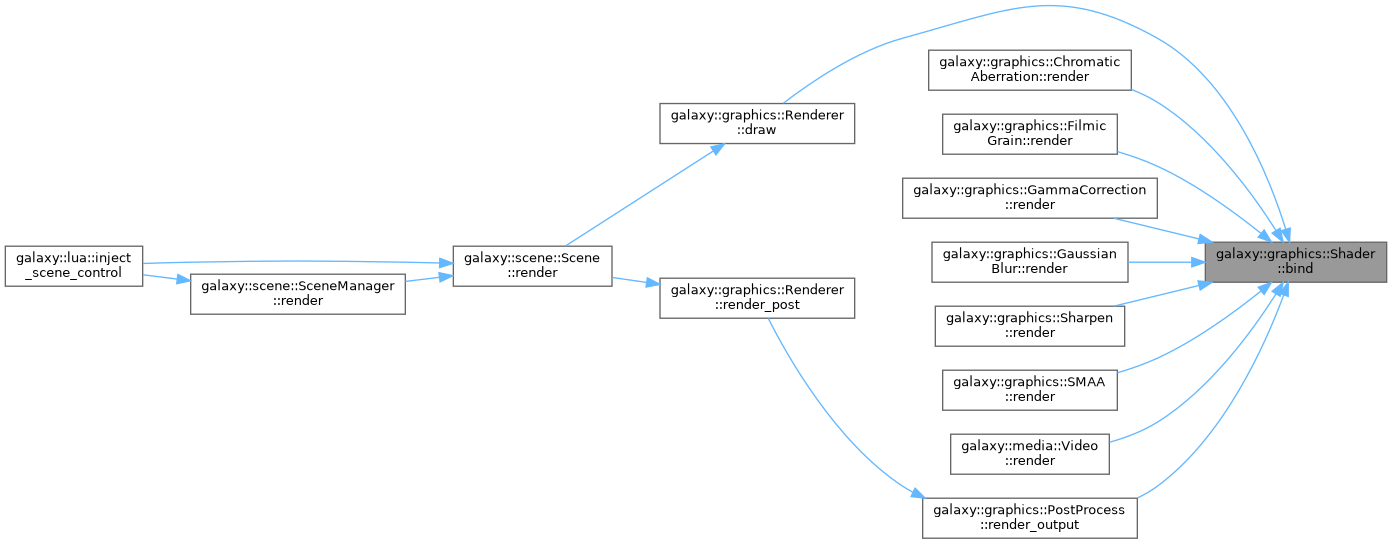

Here is the caller graph for this function:

unbind()

void galaxy::graphics::Shader::unbind

(

)

const

Unbind.

Definition at line 232 of file Shader.cpp.

set_uniform() [1/19]

template<typename... Uniforms>

void galaxy::graphics::Shader::set_uniform	(	const std::string &	name,
		const Uniforms &...	args )

Specialized variadic template for setting shader uniforms.

Useful for i.e. 2f would be ("name", 1.0f, 2.0f) and 3i would be ("name", 1, 2, 3)

Parameters

name	The name of the uniform to set.
args	Variable amount of arguments for the uniform.

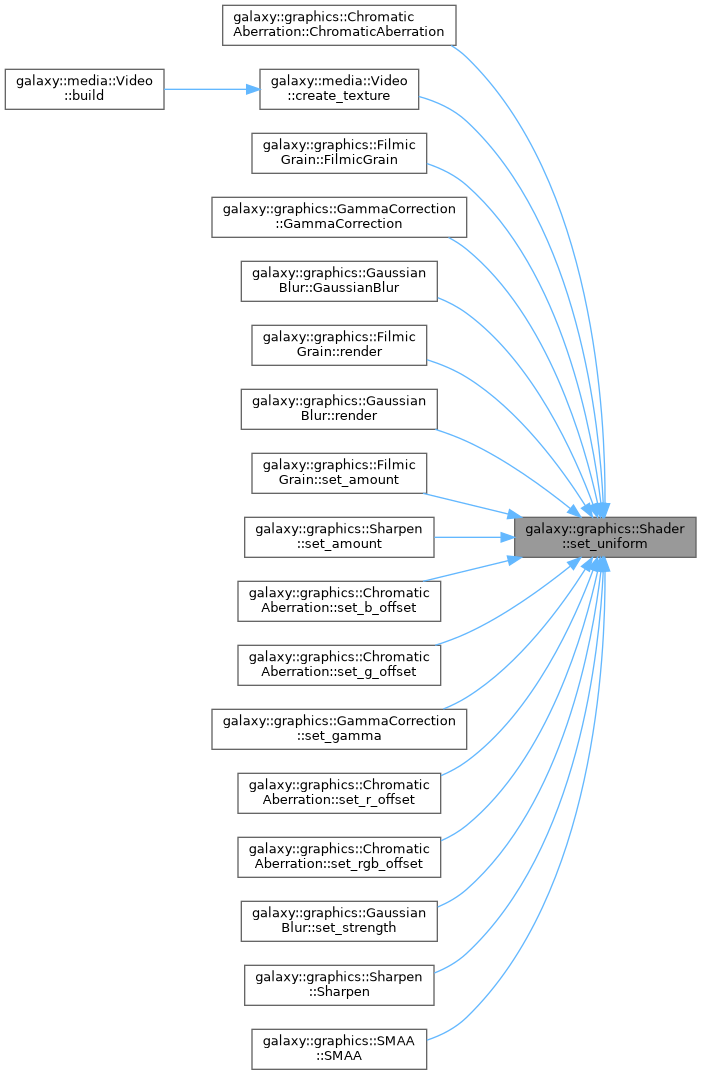

Here is the caller graph for this function:

id()

unsigned int galaxy::graphics::Shader::id ( ) const

nodiscard

Get program id.

Returns

unsigned int.

Definition at line 237 of file Shader.cpp.

operator=() [2/2]

Shader & galaxy::graphics::Shader::operator= ( const Shader & )

privatedelete

Copy assignment operator.

preprocess()

bool galaxy::graphics::Shader::preprocess ( const std::string & src )

nodiscardprivate

Extract source code from a combined shader.

Parameters

src	Raw source code.

Returns

True if parse was successful.

Definition at line 242 of file Shader.cpp.

Here is the caller graph for this function:

get_uniform_location()

int galaxy::graphics::Shader::get_uniform_location ( const std::string & name )

nodiscardprivate

Retrieves the location of a shader uniform.

Parameters

name	Shader uniform name.

Returns

Uniform location. -1 on error.

Definition at line 289 of file Shader.cpp.

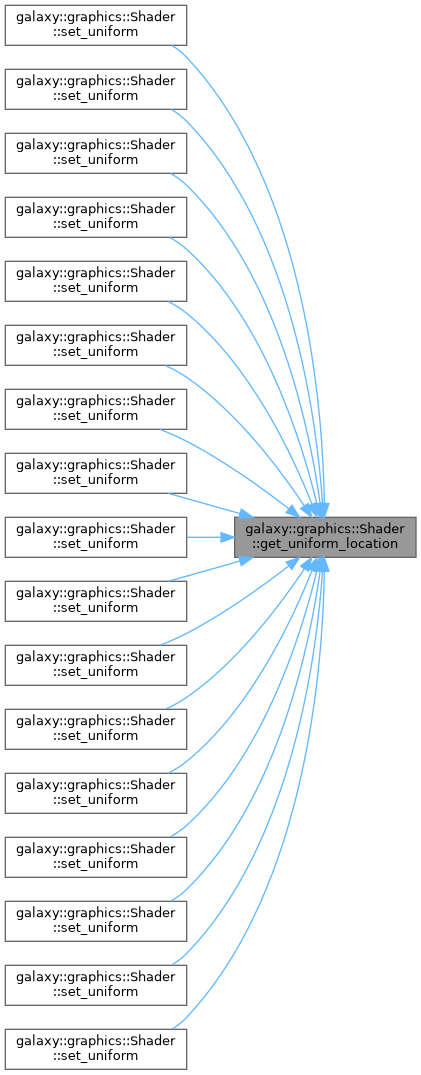

Here is the caller graph for this function:

set_uniform() [2/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name )

inline

Definition at line 189 of file Shader.hpp.

set_uniform() [3/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const bool & a )

inline

Definition at line 195 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [4/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const int & a )

inline

Definition at line 201 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [5/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const int & a, const int & b )

inline

Definition at line 207 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [6/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const int & a, const int & b, const int & c )

inline

Definition at line 213 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [7/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const int & a, const int & b, const int & c, const int & d )

inline

Definition at line 219 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [8/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const unsigned int & a )

inline

Definition at line 225 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [9/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const unsigned int & a, const unsigned int & b )

inline

Definition at line 231 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [10/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const unsigned int & a, const unsigned int & b, const unsigned int & c )

inline

Definition at line 237 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [11/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const unsigned int & a, const unsigned int & b, const unsigned int & c, const unsigned int & d )

inline

Definition at line 243 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [12/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const float & a )

inline

Definition at line 255 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [13/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const float & a, const float & b )

inline

Definition at line 261 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [14/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const float & a, const float & b, const float & c )

inline

Definition at line 267 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [15/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const float & a, const float & b, const float & c, const float & d )

inline

Definition at line 273 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [16/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const double & a )

inline

Definition at line 279 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [17/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const double & a, const double & b )

inline

Definition at line 285 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [18/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const double & a, const double & b, const double & c )

inline

Definition at line 291 of file Shader.hpp.

Here is the call graph for this function:

set_uniform() [19/19]

template<>

void galaxy::graphics::Shader::set_uniform ( const std::string & name, const double & a, const double & b, const double & c, const double & d )

inline

Definition at line 297 of file Shader.hpp.

Here is the call graph for this function:

Member Data Documentation

m_id

unsigned int galaxy::graphics::Shader::m_id

private

OpenGL handle.

Definition at line 175 of file Shader.hpp.

m_cache

ankerl::unordered_dense::map<std::string, int> galaxy::graphics::Shader::m_cache

private

Cache of uniforms for better performance.

Definition at line 180 of file Shader.hpp.

m_src

entt::compressed_pair<std::string, std::string> galaxy::graphics::Shader::m_src

private

Shader source code.

Definition at line 185 of file Shader.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/graphics/gl/Shader.hpp
• galaxy/src/galaxy/graphics/gl/Shader.cpp
