galaxy::graphics::GaussianBlur Class Reference

Gaussian Blur pass. More...

#include <GaussianBlur.hpp>

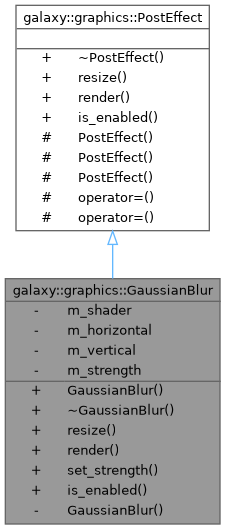

Inheritance diagram for galaxy::graphics::GaussianBlur:

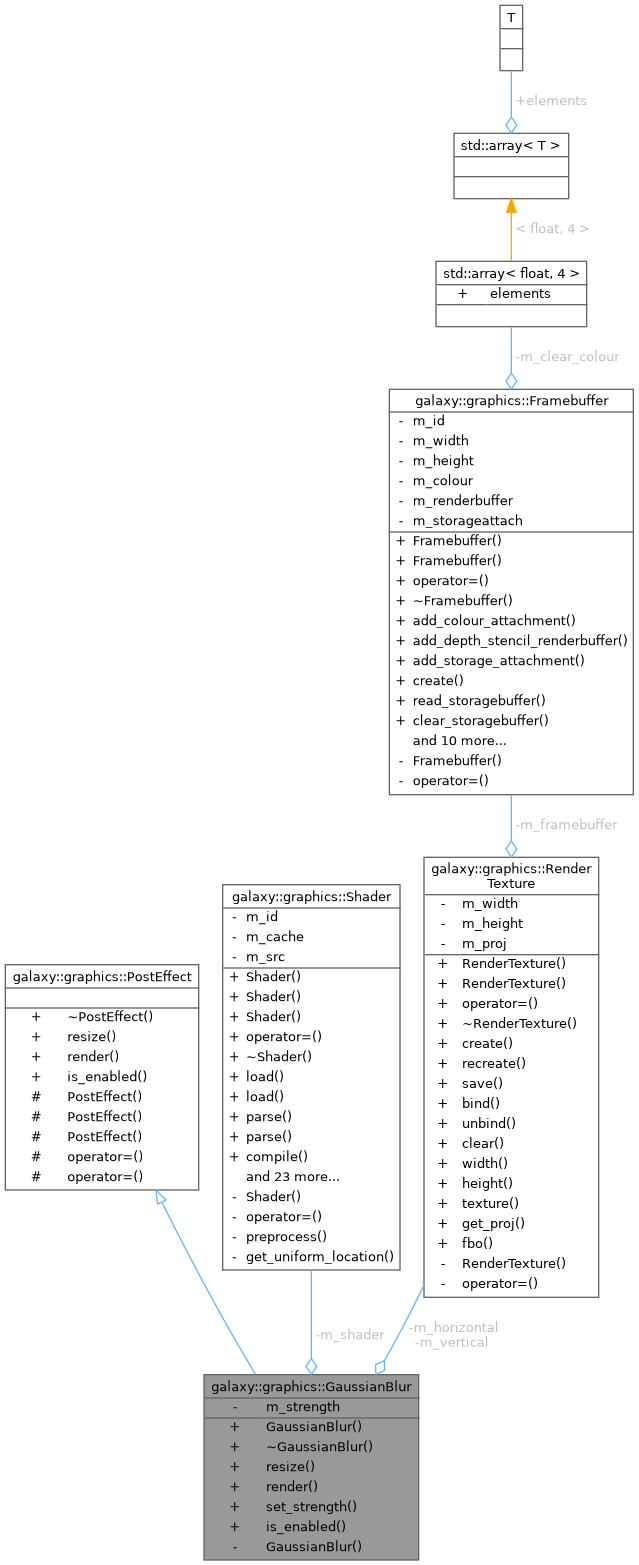

Collaboration diagram for galaxy::graphics::GaussianBlur:

Public Types
enum class	Strength : int { LOW = 0 , NORMAL = 1 , STRONG = 2 }
	Pixel sample strength. More...

Public Member Functions
	GaussianBlur (const int width, const int height)
	Argument constructor.
virtual	~GaussianBlur ()=default
	Destructor.
void	resize (const int width, const int height) override
	Resize framebuffers.
unsigned int	render (const unsigned int input) override
	Render effect to input texture.
void	set_strength (const Strength strength)
	Set gaussian blur strength.
bool	is_enabled () override
	Is this effect enabled?
Public Member Functions inherited from galaxy::graphics::PostEffect
virtual	~PostEffect ()=default
	Destructor.

Private Member Functions
	GaussianBlur ()=delete
	Constructor.

Private Attributes
Shader	m_shader
	Shader for post processing effect.
RenderTexture	m_horizontal
	Framebuffer to render horizontal blur to.
RenderTexture	m_vertical
	Framebuffer to render vertical blur to.
Strength	m_strength
	Which pixel sample strength to use.

Additional Inherited Members
Protected Member Functions inherited from galaxy::graphics::PostEffect
	PostEffect ()=default
	Constructor.
	PostEffect (const PostEffect &)=default
	Copy constructor.
	PostEffect (PostEffect &&)=default
	Move constructor.
PostEffect &	operator= (const PostEffect &)=default
	Copy assignment operator.
PostEffect &	operator= (PostEffect &&)=default
	Move assignment operator.

Detailed Description

Gaussian Blur pass.

Run after Anti-Aliasing.

Definition at line 24 of file GaussianBlur.hpp.

Member Enumeration Documentation

Strength

enum class galaxy::graphics::GaussianBlur::Strength : int

strong

Pixel sample strength.

Enumerator
LOW	0	Pixel sample of 5.
NORMAL	1	Pixel sample of 9.
STRONG	2	Pixel sample of 13.

Definition at line 30 of file GaussianBlur.hpp.

Constructor & Destructor Documentation

GaussianBlur() [1/2]

galaxy::graphics::GaussianBlur::GaussianBlur	(	const int	width,
		const int	height )

Argument constructor.

Parameters

width	Width of internal framebuffer.
height	Height of internal framebuffer.

Definition at line 117 of file GaussianBlur.cpp.

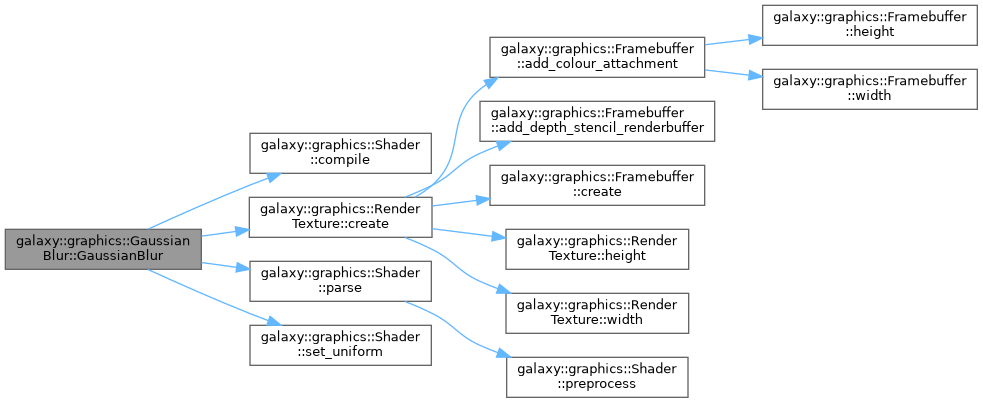

Here is the call graph for this function:

~GaussianBlur()

virtual galaxy::graphics::GaussianBlur::~GaussianBlur ( )

virtualdefault

Destructor.

GaussianBlur() [2/2]

galaxy::graphics::GaussianBlur::GaussianBlur ( )

privatedelete

Constructor.

Member Function Documentation

resize()

void galaxy::graphics::GaussianBlur::resize ( const int width, const int height )

overridevirtual

Resize framebuffers.

Parameters

width	New width of internal framebuffer.
height	New height of internal framebuffer.

Implements galaxy::graphics::PostEffect.

Definition at line 131 of file GaussianBlur.cpp.

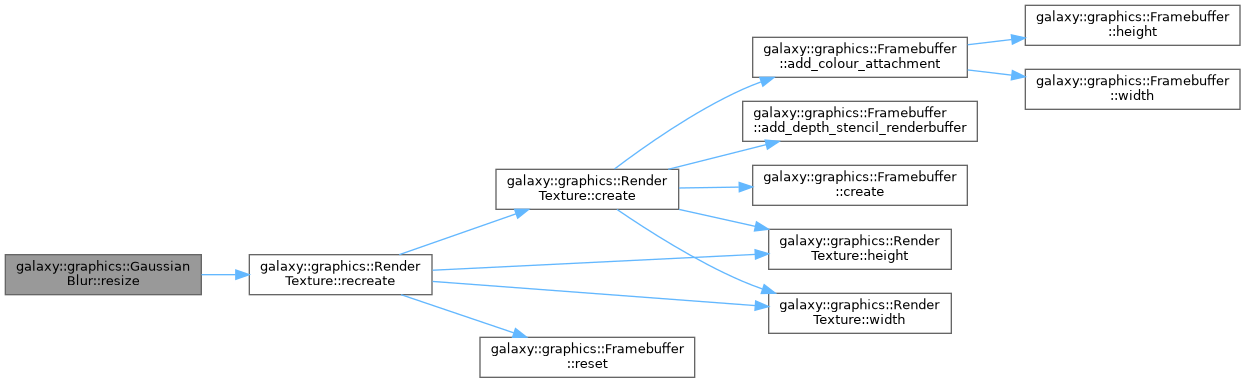

Here is the call graph for this function:

render()

unsigned int galaxy::graphics::GaussianBlur::render ( const unsigned int input )

nodiscardoverridevirtual

Render effect to input texture.

Parameters

input

Input texture from previous effect or window framebuffer.

Returns

Returns output texture for next effect or final framebuffer.

Implements galaxy::graphics::PostEffect.

Definition at line 137 of file GaussianBlur.cpp.

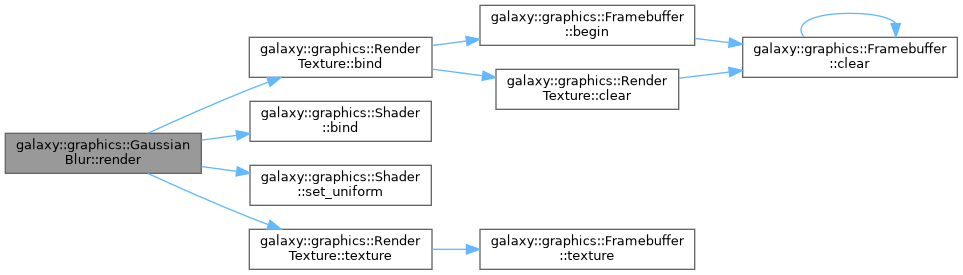

Here is the call graph for this function:

set_strength()

void galaxy::graphics::GaussianBlur::set_strength

(

const Strength

strength

)

Set gaussian blur strength.

Parameters

strength

Enum of strength values.

Definition at line 157 of file GaussianBlur.cpp.

Here is the call graph for this function:

is_enabled()

bool galaxy::graphics::GaussianBlur::is_enabled ( )

nodiscardoverridevirtual

Is this effect enabled?

Returns

True if effect is enabled. Otherwise false.

Implements galaxy::graphics::PostEffect.

Definition at line 163 of file GaussianBlur.cpp.

Member Data Documentation

m_shader

Shader galaxy::graphics::GaussianBlur::m_shader

private

Shader for post processing effect.

Definition at line 104 of file GaussianBlur.hpp.

m_horizontal

RenderTexture galaxy::graphics::GaussianBlur::m_horizontal

private

Framebuffer to render horizontal blur to.

Definition at line 109 of file GaussianBlur.hpp.

m_vertical

RenderTexture galaxy::graphics::GaussianBlur::m_vertical

private

Framebuffer to render vertical blur to.

Definition at line 114 of file GaussianBlur.hpp.

m_strength

Strength galaxy::graphics::GaussianBlur::m_strength

private

Which pixel sample strength to use.

Definition at line 119 of file GaussianBlur.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/graphics/post/GaussianBlur.hpp
• galaxy/src/galaxy/graphics/post/GaussianBlur.cpp
