galaxy::ShaderStorageBuffer Class Reference

Modern SSBO abstraction. More...

#include <ShaderStorageBuffer.hpp>

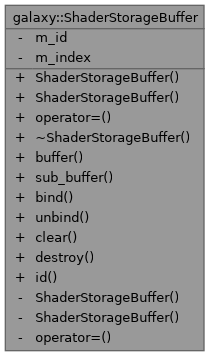

Collaboration diagram for galaxy::ShaderStorageBuffer:

Public Member Functions
	ShaderStorageBuffer (const int index)
	Constructor.
	ShaderStorageBuffer (ShaderStorageBuffer &&) noexcept
	Move constructor.
ShaderStorageBuffer &	operator= (ShaderStorageBuffer &&) noexcept
	Move assignment operator.
	~ShaderStorageBuffer ()
	Destructor.
template<typename Object >
void	buffer (const unsigned int count, Object *data)
	Buffer data.
template<typename Object >
void	sub_buffer (const unsigned int offset, const unsigned int count, Object *data)
	Sub buffer data.
void	bind () const
	Bind buffer.
void	unbind () const
	Unbind buffer.
void	clear () const
	Clears data from buffer.
void	destroy ()
	Destroy shader.
unsigned int	id () const noexcept
	Get OpenGL handle.

Private Member Functions
	ShaderStorageBuffer ()=delete
	Default constructor.
	ShaderStorageBuffer (const ShaderStorageBuffer &)=delete
	Copy constructor.
ShaderStorageBuffer &	operator= (const ShaderStorageBuffer &)=delete
	Copy assignment operator.

Private Attributes
unsigned int	m_id
	OpenGL handle.
int	m_index
	Index binding of SSBO in vertex shader.

Detailed Description

Modern SSBO abstraction.

https://ktstephano.github.io/rendering/opengl/ssbos

Definition at line 20 of file ShaderStorageBuffer.hpp.

Constructor & Destructor Documentation

ShaderStorageBuffer() [1/4]

galaxy::ShaderStorageBuffer::ShaderStorageBuffer

(

const int

index

)

Constructor.

Parameters

index

Index binding that needs to match in vertex shader.

Definition at line 12 of file ShaderStorageBuffer.cpp.

ShaderStorageBuffer() [2/4]

galaxy::ShaderStorageBuffer::ShaderStorageBuffer ( ShaderStorageBuffer && s )

noexcept

Move constructor.

Definition at line 19 of file ShaderStorageBuffer.cpp.

~ShaderStorageBuffer()

galaxy::ShaderStorageBuffer::~ShaderStorageBuffer

(

)

Destructor.

Definition at line 44 of file ShaderStorageBuffer.cpp.

Here is the call graph for this function:

ShaderStorageBuffer() [3/4]

galaxy::ShaderStorageBuffer::ShaderStorageBuffer ( )

privatedelete

Default constructor.

ShaderStorageBuffer() [4/4]

galaxy::ShaderStorageBuffer::ShaderStorageBuffer ( const ShaderStorageBuffer & )

privatedelete

Copy constructor.

Member Function Documentation

operator=() [1/2]

ShaderStorageBuffer & galaxy::ShaderStorageBuffer::operator= ( ShaderStorageBuffer && s )

noexcept

Move assignment operator.

Definition at line 29 of file ShaderStorageBuffer.cpp.

buffer()

template<typename Object >

void galaxy::ShaderStorageBuffer::buffer ( const unsigned int count, Object * data )

inline

Buffer data.

Template Parameters

Object

The data structure to use with this buffer.

Parameters

count	Number of objects in data.
data	Pointer to the data to buffer.

Definition at line 125 of file ShaderStorageBuffer.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

sub_buffer()

template<typename Object >

void galaxy::ShaderStorageBuffer::sub_buffer ( const unsigned int offset, const unsigned int count, Object * data )

inline

Sub buffer data.

Template Parameters

Object

The data structure to use with this buffer.

Parameters

offset	Offset to start adding buffer from.
count	Number of objects in data.
data	Pointer to the data to buffer.

Definition at line 134 of file ShaderStorageBuffer.hpp.

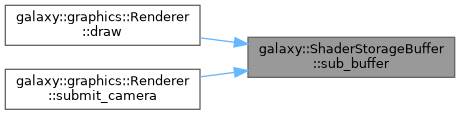

Here is the caller graph for this function:

bind()

void galaxy::ShaderStorageBuffer::bind

(

)

const

Bind buffer.

Definition at line 49 of file ShaderStorageBuffer.cpp.

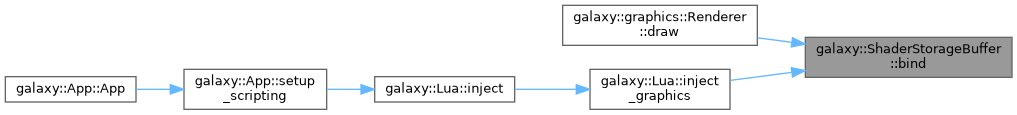

Here is the caller graph for this function:

unbind()

void galaxy::ShaderStorageBuffer::unbind

(

)

const

Unbind buffer.

Definition at line 54 of file ShaderStorageBuffer.cpp.

Here is the caller graph for this function:

clear()

void galaxy::ShaderStorageBuffer::clear

(

)

const

Clears data from buffer.

Definition at line 59 of file ShaderStorageBuffer.cpp.

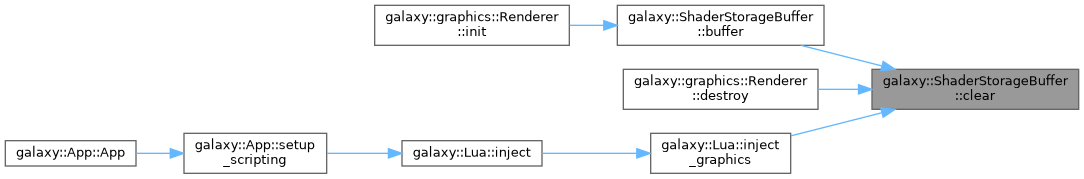

Here is the caller graph for this function:

destroy()

void galaxy::ShaderStorageBuffer::destroy

(

)

Destroy shader.

Definition at line 67 of file ShaderStorageBuffer.cpp.

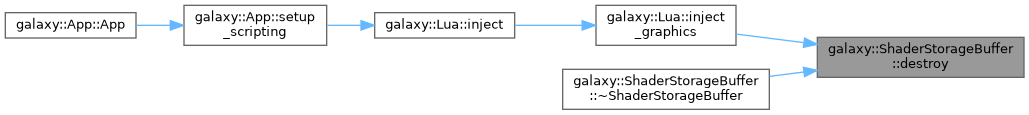

Here is the caller graph for this function:

id()

unsigned int galaxy::ShaderStorageBuffer::id ( ) const

nodiscardnoexcept

Get OpenGL handle.

Returns

Unsigned integer.

Definition at line 76 of file ShaderStorageBuffer.cpp.

Here is the caller graph for this function:

operator=() [2/2]

ShaderStorageBuffer & galaxy::ShaderStorageBuffer::operator= ( const ShaderStorageBuffer & )

privatedelete

Copy assignment operator.

Member Data Documentation

m_id

unsigned int galaxy::ShaderStorageBuffer::m_id

private

OpenGL handle.

Definition at line 116 of file ShaderStorageBuffer.hpp.

m_index

int galaxy::ShaderStorageBuffer::m_index

private

Index binding of SSBO in vertex shader.

Definition at line 121 of file ShaderStorageBuffer.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/graphics/gl/ShaderStorageBuffer.hpp
• galaxy/src/galaxy/graphics/gl/ShaderStorageBuffer.cpp
