galaxy::graphics::VertexBatch Class Reference

Batches together vertex data to reduce draw calls. More...

#include <VertexBatch.hpp>

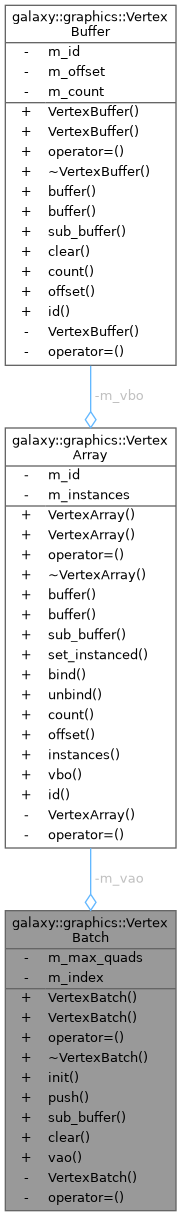

Collaboration diagram for galaxy::graphics::VertexBatch:

Public Member Functions
	VertexBatch ()
	Constructor.
	VertexBatch (VertexBatch &&)
	Move constructor.
VertexBatch &	operator= (VertexBatch &&)
	Move assignment operator.
	~VertexBatch ()
	Destructor.
void	init (const int max_quads)
	Initialize vertex batch data.
int	push (std::span< Vertex > vertices)
	Buffer some vertices into the spritebatch.
void	sub_buffer (const unsigned int index, std::span< Vertex > vertices)
	Sub-buffer vertex object.
void	clear ()
	Clears out vertex buffer.
VertexArray &	vao ()
	Get vertex array object.

Private Member Functions
	VertexBatch (const VertexBatch &)=delete
	Copy constructor.
VertexBatch &	operator= (const VertexBatch &)=delete
	Copy assignment operator.

Private Attributes
VertexArray	m_vao
	Vertex data.
int	m_max_quads
	Maximum quads allowed.
int	m_index
	Current index.

Detailed Description

Batches together vertex data to reduce draw calls.

Usually used as part of other components, like a particle engine or map system.

Definition at line 22 of file VertexBatch.hpp.

Constructor & Destructor Documentation

VertexBatch() [1/3]

galaxy::graphics::VertexBatch::VertexBatch

(

)

Constructor.

Definition at line 16 of file VertexBatch.cpp.

VertexBatch() [2/3]

galaxy::graphics::VertexBatch::VertexBatch

(

VertexBatch &&

s

)

Move constructor.

Definition at line 22 of file VertexBatch.cpp.

~VertexBatch()

galaxy::graphics::VertexBatch::~VertexBatch

(

)

Destructor.

Definition at line 41 of file VertexBatch.cpp.

VertexBatch() [3/3]

galaxy::graphics::VertexBatch::VertexBatch ( const VertexBatch & )

privatedelete

Copy constructor.

Member Function Documentation

operator=() [1/2]

VertexBatch & galaxy::graphics::VertexBatch::operator=

(

VertexBatch &&

s

)

Move assignment operator.

Definition at line 29 of file VertexBatch.cpp.

init()

void galaxy::graphics::VertexBatch::init

(

const int

max_quads

)

Initialize vertex batch data.

Parameters

max_quads

Number of quads to allow to be batched.

Definition at line 45 of file VertexBatch.cpp.

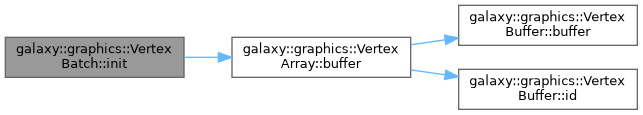

Here is the call graph for this function:

Here is the caller graph for this function:

push()

int galaxy::graphics::VertexBatch::push

(

std::span< Vertex >

vertices

)

Buffer some vertices into the spritebatch.

Parameters

vertices

Vertex data to add to spritebatch buffer.

Returns

Index where the vertx data is offset from. Useful to update animations, transforms later. -1 on error.

Definition at line 75 of file VertexBatch.cpp.

Here is the call graph for this function:

sub_buffer()

void galaxy::graphics::VertexBatch::sub_buffer	(	const unsigned int	index,
		std::span< Vertex >	vertices )

Sub-buffer vertex object.

Parameters

index	Offset to start at. 0 = first vertex group (usually a group of 4 quads).
vertices	Vertices to assign.

Definition at line 91 of file VertexBatch.cpp.

Here is the call graph for this function:

clear()

void galaxy::graphics::VertexBatch::clear

(

)

Clears out vertex buffer.

Definition at line 96 of file VertexBatch.cpp.

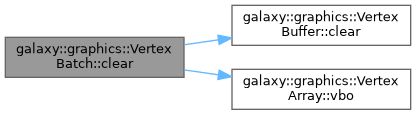

Here is the call graph for this function:

vao()

VertexArray & galaxy::graphics::VertexBatch::vao ( )

nodiscard

Get vertex array object.

Returns

Reference to VAO.

Definition at line 101 of file VertexBatch.cpp.

operator=() [2/2]

VertexBatch & galaxy::graphics::VertexBatch::operator= ( const VertexBatch & )

privatedelete

Copy assignment operator.

Member Data Documentation

m_vao

VertexArray galaxy::graphics::VertexBatch::m_vao

private

Vertex data.

Definition at line 98 of file VertexBatch.hpp.

m_max_quads

int galaxy::graphics::VertexBatch::m_max_quads

private

Maximum quads allowed.

Definition at line 103 of file VertexBatch.hpp.

m_index

int galaxy::graphics::VertexBatch::m_index

private

Current index.

Definition at line 108 of file VertexBatch.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/graphics/VertexBatch.hpp
• galaxy/src/galaxy/graphics/VertexBatch.cpp
