galaxy::scene::SceneManager Class Reference

Scene saving/loading, pushing, popping, creating. Also manages entities. More...

#include <SceneManager.hpp>

Inheritance diagram for galaxy::scene::SceneManager:

Collaboration diagram for galaxy::scene::SceneManager:

Public Member Functions
	SceneManager () noexcept
	Constructor.
virtual	~SceneManager () noexcept
	Destructor.
std::shared_ptr< Scene >	create (const std::string &scene)
	Create scene in engine.
void	set (const std::string &scene)
	Clears all from stack and sets as active.
void	push (const std::string &scene)
	Push a scene onto the top of stack.
void	pop ()
	Remove scene on top of stack.
void	pop_all ()
	Pop all scenes.
std::shared_ptr< Scene >	top () noexcept
	Get top scene.
void	update ()
	Process events and updates.
void	render ()
	Render scenes.
void	load_app (const std::string &appdata_file)
	Load app data file into scene manager.
void	save_app (const std::string &file)
	Save all active scenes and sub data within those scenes.
void	clear ()
	Deletes all scene data.
bool	empty () const noexcept
	Are there any scenes.
nlohmann::json	serialize () override
	Serializes object.
void	deserialize (const nlohmann::json &json) override
	Deserializes from object.
Public Member Functions inherited from galaxy::fs::Serializable
virtual	~Serializable ()
	Destructor.
virtual Serializable &	operator= (Serializable &&)=default
	Move assignment operator.
virtual Serializable &	operator= (const Serializable &)=default
	Copy assignment operator.

Private Attributes
ankerl::unordered_dense::map< std::uint64_t, std::shared_ptr< Scene > >	m_scenes
	Scene storage.
std::vector< std::shared_ptr< Scene > >	m_stack
	Active scenes.
core::Registry	m_registry
	Entity data.

Additional Inherited Members
Protected Member Functions inherited from galaxy::fs::Serializable
	Serializable ()
	Constructor.

Detailed Description

Scene saving/loading, pushing, popping, creating. Also manages entities.

Definition at line 21 of file SceneManager.hpp.

Constructor & Destructor Documentation

SceneManager()

galaxy::scene::SceneManager::SceneManager ( )

noexcept

Constructor.

Definition at line 27 of file SceneManager.cpp.

~SceneManager()

galaxy::scene::SceneManager::~SceneManager ( )

virtualnoexcept

Destructor.

Definition at line 31 of file SceneManager.cpp.

Here is the call graph for this function:

Member Function Documentation

create()

std::shared_ptr< Scene > galaxy::scene::SceneManager::create

(

const std::string &

scene

)

Create scene in engine.

Parameters

scene

Scene name.

Returns

Shared pointer to created scene, or nullptr on failure.

Definition at line 36 of file SceneManager.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

set()

void galaxy::scene::SceneManager::set

(

const std::string &

scene

)

Clears all from stack and sets as active.

Parameters

scene

Scene name.

Definition at line 51 of file SceneManager.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

push()

void galaxy::scene::SceneManager::push

(

const std::string &

scene

)

Push a scene onto the top of stack.

Parameters

scene

Scene name.

Definition at line 57 of file SceneManager.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

pop()

void galaxy::scene::SceneManager::pop

(

)

Remove scene on top of stack.

Definition at line 64 of file SceneManager.cpp.

Here is the caller graph for this function:

pop_all()

void galaxy::scene::SceneManager::pop_all

(

)

Pop all scenes.

Definition at line 73 of file SceneManager.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

top()

std::shared_ptr< Scene > galaxy::scene::SceneManager::top ( )

nodiscardnoexcept

Get top scene.

Definition at line 81 of file SceneManager.cpp.

Here is the caller graph for this function:

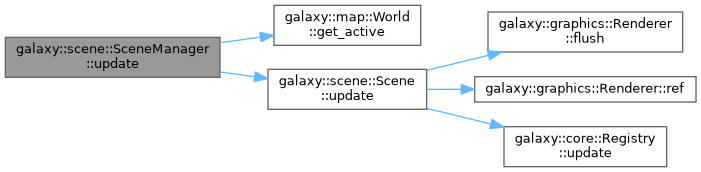

update()

void galaxy::scene::SceneManager::update

(

)

Process events and updates.

Definition at line 86 of file SceneManager.cpp.

Here is the caller graph for this function:

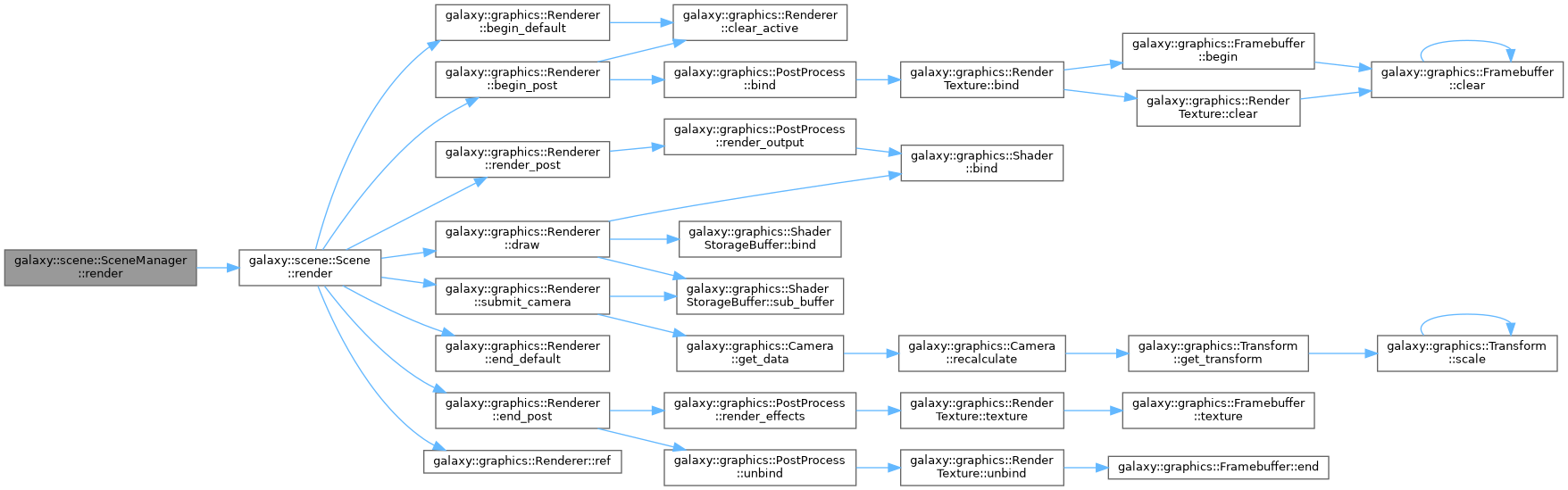

render()

void galaxy::scene::SceneManager::render

(

)

Render scenes.

Definition at line 94 of file SceneManager.cpp.

Here is the caller graph for this function:

load_app()

void galaxy::scene::SceneManager::load_app

(

const std::string &

appdata_file

)

Load app data file into scene manager.

Will remove any other loaded scenes and adjust the currently loaded scene.

Parameters

appdata_file

Zlib + Base64 encoded json data file. Should have .galaxy extension.

Definition at line 102 of file SceneManager.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

save_app()

void galaxy::scene::SceneManager::save_app

(

const std::string &

file

)

Save all active scenes and sub data within those scenes.

Parameters

file	File to save data to.

Definition at line 151 of file SceneManager.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

clear()

void galaxy::scene::SceneManager::clear

(

)

Deletes all scene data.

Definition at line 185 of file SceneManager.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

empty()

bool galaxy::scene::SceneManager::empty ( ) const

nodiscardnoexcept

Are there any scenes.

Returns

True if no scenes.

Definition at line 192 of file SceneManager.cpp.

Here is the caller graph for this function:

serialize()

nlohmann::json galaxy::scene::SceneManager::serialize ( )

nodiscardoverridevirtual

Serializes object.

Returns

JSON object containing data to write out.

Implements galaxy::fs::Serializable.

Definition at line 197 of file SceneManager.cpp.

Here is the caller graph for this function:

deserialize()

void galaxy::scene::SceneManager::deserialize ( const nlohmann::json & json )

overridevirtual

Deserializes from object.

Parameters

json	Json object to retrieve data from.

Implements galaxy::fs::Serializable.

Definition at line 222 of file SceneManager.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_scenes

ankerl::unordered_dense::map<std::uint64_t, std::shared_ptr<Scene> > galaxy::scene::SceneManager::m_scenes

private

Scene storage.

Definition at line 132 of file SceneManager.hpp.

m_stack

std::vector<std::shared_ptr<Scene> > galaxy::scene::SceneManager::m_stack

private

Active scenes.

Definition at line 137 of file SceneManager.hpp.

m_registry

core::Registry galaxy::scene::SceneManager::m_registry

private

Entity data.

Definition at line 142 of file SceneManager.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/scene/SceneManager.hpp
• galaxy/src/galaxy/scene/SceneManager.cpp
