galaxy::scene::Scene Class Reference

Represents a scene in a game. Like the menu, game, etc. Does not share resources. More...

#include <Scene.hpp>

Inheritance diagram for galaxy::scene::Scene:

Collaboration diagram for galaxy::scene::Scene:

Public Member Functions
	Scene (const std::string &name)
	Name constructor.
virtual	~Scene ()
	Destructor.
virtual void	load ()
	When scene is loaded and made active.
virtual void	unload ()
	When scene is deactivated / unloaded.
virtual void	update ()
	Process events and updates.
virtual void	render ()
	Render scene.
bool	load_world (const std::string &file)
	Loads an LDTK world for this scene.
nlohmann::json	serialize () override
	Serializes object.
void	deserialize (const nlohmann::json &json) override
	Deserializes from object.
	Scene (const std::string &name)
	Name constructor.
virtual	~Scene ()
	Destructor.
void	add_system (const std::string &system)
	Add a system to operate on entities in this scene.
void	load ()
	When scene is loaded and made active.
void	unload ()
	When scene is deactivated / unloaded.
void	update (core::Registry &registry)
	Process events and updates.
void	render ()
	Update ui.
const std::string &	name () const noexcept
	Get scene name.
nlohmann::json	serialize () override
	Serializes object.
void	deserialize (const nlohmann::json &json) override
	Deserializes from object.

Public Attributes
std::string	m_name
	Scene name for debug purposes.
graphics::Camera	m_camera
	Camera.
entt::dispatcher	m_dispatcher
	Scene event handler.
core::Registry	m_registry
	Entity data.
b2World	m_b2world
	Box2D physics world.
map::World	m_world
	LDTK world.
int	m_velocity_iterations
	Box2D world velocity iterations.
int	m_position_iterations
	Box2d world position iterations.

Private Member Functions
	Scene ()=delete
	Constructor.
	Scene ()=delete
	Constructor.

Private Attributes
meta::SystemStack	m_systems
	List of systems to run.

Detailed Description

Represents a scene in a game. Like the menu, game, etc. Does not share resources.

Represents a scene in a game. Like the menu, game, etc.

Scenes should be logically grouped -> i.e. a map, player data + ui, battle, menu, etc. Each scene is an independant collection of systems, but not entities.

Definition at line 28 of file Scene.hpp.

Constructor & Destructor Documentation

Scene() [1/4]

galaxy::scene::Scene::Scene

(

const std::string &

name

)

Name constructor.

Parameters

name	Name of the scene for debug / editor purposes.

Definition at line 35 of file Scene.cpp.

Here is the call graph for this function:

~Scene() [1/2]

galaxy::scene::Scene::~Scene ( )

virtual

Destructor.

Definition at line 47 of file Scene.cpp.

Scene() [2/4]

galaxy::scene::Scene::Scene ( )

privatedelete

Constructor.

Scene() [3/4]

galaxy::scene::Scene::Scene

(

const std::string &

name

)

Name constructor.

Parameters

name	Name of the scene for debug / editor purposes.

~Scene() [2/2]

virtual galaxy::scene::Scene::~Scene ( )

virtual

Destructor.

Scene() [4/4]

galaxy::scene::Scene::Scene ( )

privatedelete

Constructor.

Member Function Documentation

load() [1/2]

void galaxy::scene::Scene::load ( )

virtual

When scene is loaded and made active.

Definition at line 51 of file Scene.cpp.

Here is the caller graph for this function:

unload() [1/2]

void galaxy::scene::Scene::unload ( )

virtual

When scene is deactivated / unloaded.

Definition at line 56 of file Scene.cpp.

Here is the caller graph for this function:

update() [1/2]

void galaxy::scene::Scene::update ( )

virtual

Process events and updates.

Definition at line 61 of file Scene.cpp.

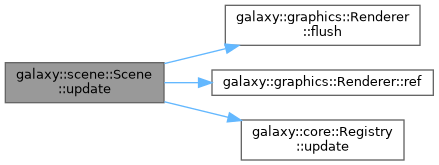

Here is the call graph for this function:

Here is the caller graph for this function:

render() [1/2]

void galaxy::scene::Scene::render ( )

virtual

Render scene.

Definition at line 68 of file Scene.cpp.

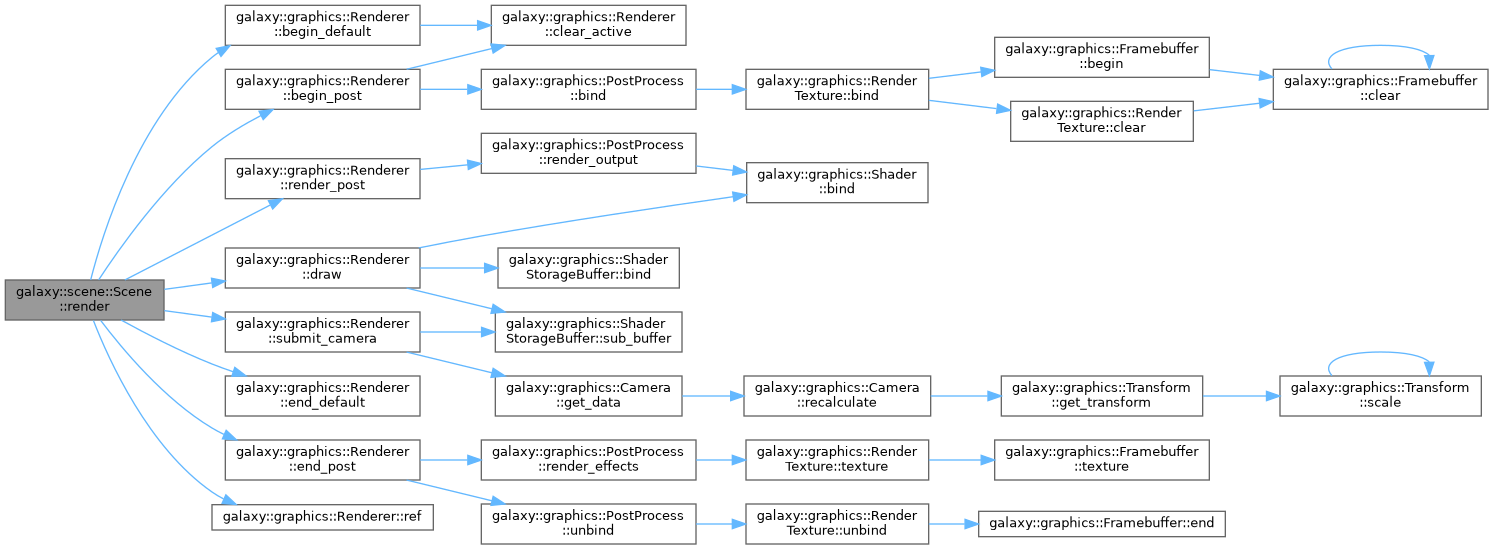

Here is the call graph for this function:

Here is the caller graph for this function:

load_world()

bool galaxy::scene::Scene::load_world ( const std::string & file )

nodiscard

Loads an LDTK world for this scene.

Parameters

file	.ldtk project file to load.

Returns

True if loaded successfully.

Definition at line 82 of file Scene.cpp.

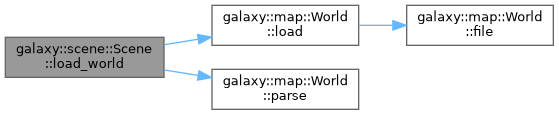

Here is the call graph for this function:

Here is the caller graph for this function:

serialize() [1/2]

nlohmann::json galaxy::scene::Scene::serialize ( )

nodiscardoverride

Serializes object.

Returns

JSON object containing data to write out.

Definition at line 93 of file Scene.cpp.

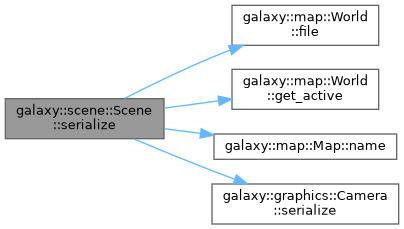

Here is the call graph for this function:

deserialize() [1/2]

void galaxy::scene::Scene::deserialize ( const nlohmann::json & json )

override

Deserializes from object.

Parameters

json	Json object to retrieve data from.

Definition at line 124 of file Scene.cpp.

Here is the call graph for this function:

add_system()

void galaxy::scene::Scene::add_system

(

const std::string &

system

)

Add a system to operate on entities in this scene.

Scene is called in order of adding. So i.e. if you add anim then render, systems are called in that order.

Parameters

system

Name of system to add to this scene.

Definition at line 40 of file Scene.cpp.

Here is the caller graph for this function:

load() [2/2]

void galaxy::scene::Scene::load

(

)

When scene is loaded and made active.

unload() [2/2]

void galaxy::scene::Scene::unload

(

)

When scene is deactivated / unloaded.

update() [2/2]

void galaxy::scene::Scene::update

(

core::Registry &

registry

)

Process events and updates.

Parameters

registry

Registry to process.

Definition at line 55 of file Scene.cpp.

render() [2/2]

void galaxy::scene::Scene::render

(

)

Update ui.

Render scene.

name()

const std::string & galaxy::scene::Scene::name ( ) const

nodiscardnoexcept

Get scene name.

Definition at line 103 of file Scene.cpp.

Here is the caller graph for this function:

serialize() [2/2]

nlohmann::json galaxy::scene::Scene::serialize ( )

nodiscardoverride

Serializes object.

Returns

JSON object containing data to write out.

deserialize() [2/2]

void galaxy::scene::Scene::deserialize ( const nlohmann::json & json )

override

Deserializes from object.

Parameters

json	Json object to retrieve data from.

Member Data Documentation

m_name

std::string galaxy::scene::Scene::m_name

Scene name for debug purposes.

Definition at line 94 of file Scene.hpp.

m_camera

graphics::Camera galaxy::scene::Scene::m_camera

Camera.

Definition at line 99 of file Scene.hpp.

m_dispatcher

entt::dispatcher galaxy::scene::Scene::m_dispatcher

Scene event handler.

Definition at line 104 of file Scene.hpp.

m_registry

core::Registry galaxy::scene::Scene::m_registry

Entity data.

Definition at line 109 of file Scene.hpp.

m_b2world

b2World galaxy::scene::Scene::m_b2world

Box2D physics world.

Definition at line 114 of file Scene.hpp.

m_world

map::World galaxy::scene::Scene::m_world

LDTK world.

Definition at line 119 of file Scene.hpp.

m_velocity_iterations

int galaxy::scene::Scene::m_velocity_iterations

Box2D world velocity iterations.

Definition at line 124 of file Scene.hpp.

m_position_iterations

int galaxy::scene::Scene::m_position_iterations

Box2d world position iterations.

Definition at line 129 of file Scene.hpp.

m_systems

meta::SystemStack galaxy::scene::Scene::m_systems

private

List of systems to run.

Definition at line 115 of file Scene.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/scene/old_scene/Scene.hpp
• galaxy/src/galaxy/scene/Scene.hpp
• galaxy/src/galaxy/scene/old_scene/Scene.cpp
• galaxy/src/galaxy/scene/Scene.cpp
