galaxy::VertexBatch Class Reference

A group of vertices for multiple renderables batched together. More...

#include <VertexBatch.hpp>

Collaboration diagram for galaxy::VertexBatch:

Public Member Functions
	VertexBatch (const int max, const int vertex_count, const std::vector< unsigned int > &indices) noexcept
	Constructor.
	VertexBatch (VertexBatch &&) noexcept
	Move constructor.
VertexBatch &	operator= (VertexBatch &&) noexcept
	Move assignment operator.
	~VertexBatch () noexcept
	Destructor.
void	prepare () noexcept
	Sets up counters to begin pushing vertices.
void	push (const std::vector< Vertex > &vertices) noexcept
	Add vertex and index data to batch.
void	flush () noexcept
	Copy all data to GPU.
void	bind () const noexcept
	Bind this batchs vertex array object.
int	count () const noexcept
	Get the index count.
void *	offset () noexcept
	Gets index offset.
VertexArray &	vao () noexcept
	Gets internal VAO.

Private Member Functions
	VertexBatch ()=delete
	Constructor.
	VertexBatch (const VertexBatch &)=delete
	Copy constructor.
VertexBatch &	operator= (const VertexBatch &)=delete
	Copy assignment operator.

Private Attributes
int	m_vertex_count
	Amount of vertices to flush.
int	m_index_count
	Amount of indices per renderable.
int	m_count
	Amount of renderables to draw.
int	m_vertex_length
	Total number of vertices.
int	m_index_length
	Total number of indices.
std::vector< Vertex >	m_vertices
	CPU side reserved vertices.
VertexArray	m_vao
	VAO object for GPU data.

Detailed Description

A group of vertices for multiple renderables batched together.

Call: prepare() -> push() -> flush() -> bind(), and repeat.

Definition at line 20 of file VertexBatch.hpp.

Constructor & Destructor Documentation

VertexBatch() [1/4]

galaxy::VertexBatch::VertexBatch ( const int max, const int vertex_count, const std::vector< unsigned int > & indices )

noexcept

Constructor.

Parameters

max	Max renderable objects.
vertex_count	Number of vertices in a single object.
indices	Default indices to use for each renderable.

Definition at line 12 of file VertexBatch.cpp.

VertexBatch() [2/4]

galaxy::VertexBatch::VertexBatch ( VertexBatch && vb )

noexcept

Move constructor.

Definition at line 43 of file VertexBatch.cpp.

~VertexBatch()

galaxy::VertexBatch::~VertexBatch ( )

noexcept

Destructor.

Definition at line 70 of file VertexBatch.cpp.

VertexBatch() [3/4]

galaxy::VertexBatch::VertexBatch ( )

privatedelete

Constructor.

VertexBatch() [4/4]

galaxy::VertexBatch::VertexBatch ( const VertexBatch & )

privatedelete

Copy constructor.

Deleted.

Member Function Documentation

operator=() [1/2]

VertexBatch & galaxy::VertexBatch::operator= ( VertexBatch && vb )

noexcept

Move assignment operator.

Definition at line 54 of file VertexBatch.cpp.

prepare()

void galaxy::VertexBatch::prepare ( )

noexcept

Sets up counters to begin pushing vertices.

Definition at line 74 of file VertexBatch.cpp.

Here is the caller graph for this function:

push()

void galaxy::VertexBatch::push ( const std::vector< Vertex > & vertices )

noexcept

Add vertex and index data to batch.

Parameters

vertices

List of vertices.

Definition at line 80 of file VertexBatch.cpp.

Here is the caller graph for this function:

flush()

void galaxy::VertexBatch::flush ( )

noexcept

Copy all data to GPU.

Definition at line 93 of file VertexBatch.cpp.

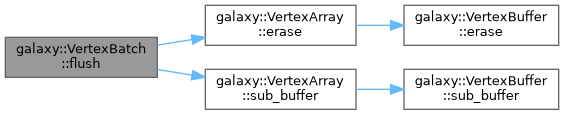

Here is the call graph for this function:

Here is the caller graph for this function:

bind()

void galaxy::VertexBatch::bind ( ) const

noexcept

Bind this batchs vertex array object.

Definition at line 98 of file VertexBatch.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

count()

int galaxy::VertexBatch::count ( ) const

nodiscardnoexcept

Get the index count.

Returns

Integer.

Definition at line 103 of file VertexBatch.cpp.

Here is the caller graph for this function:

offset()

void * galaxy::VertexBatch::offset ( )

nodiscardnoexcept

Gets index offset.

Returns

Integer as void pointer for opengl shenanigans.

Definition at line 108 of file VertexBatch.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

vao()

VertexArray & galaxy::VertexBatch::vao ( )

nodiscardnoexcept

Gets internal VAO.

Returns

Reference to VertexArray.

Definition at line 113 of file VertexBatch.cpp.

Here is the caller graph for this function:

operator=() [2/2]

VertexBatch & galaxy::VertexBatch::operator= ( const VertexBatch & )

privatedelete

Copy assignment operator.

Deleted.

Member Data Documentation

m_vertex_count

int galaxy::VertexBatch::m_vertex_count

private

Amount of vertices to flush.

Definition at line 117 of file VertexBatch.hpp.

m_index_count

int galaxy::VertexBatch::m_index_count

private

Amount of indices per renderable.

Definition at line 122 of file VertexBatch.hpp.

m_count

int galaxy::VertexBatch::m_count

private

Amount of renderables to draw.

Definition at line 127 of file VertexBatch.hpp.

m_vertex_length

int galaxy::VertexBatch::m_vertex_length

private

Total number of vertices.

Definition at line 132 of file VertexBatch.hpp.

m_index_length

int galaxy::VertexBatch::m_index_length

private

Total number of indices.

Definition at line 137 of file VertexBatch.hpp.

m_vertices

std::vector<Vertex> galaxy::VertexBatch::m_vertices

private

CPU side reserved vertices.

Definition at line 142 of file VertexBatch.hpp.

m_vao

VertexArray galaxy::VertexBatch::m_vao

private

VAO object for GPU data.

Definition at line 147 of file VertexBatch.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/graphics/VertexBatch.hpp
• galaxy/src/galaxy/graphics/VertexBatch.cpp
