Represents an RGBA colour. More...

#include <Colour.hpp>

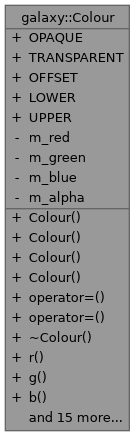

Collaboration diagram for galaxy::Colour:

Public Member Functions
	Colour () noexcept
	Constructor.

	Colour (const std::uint8_t r, const std::uint8_t g, const std::uint8_t b, const std::uint8_t a=OPAQUE) noexcept
	Colour constructor.

	Colour (Colour &&) noexcept
	Move constructor.

	Colour (const Colour &) noexcept
	Copy constructor.

Colour &	operator= (Colour &&) noexcept
	Move assignment operator.

Colour &	operator= (const Colour &w) noexcept
	Copy assignment operator.

	~Colour () noexcept
	Destructor.

void	r (const std::uint8_t r) noexcept
	Red.

void	g (const std::uint8_t g) noexcept
	Green.

void	b (const std::uint8_t b) noexcept
	Blue.

void	a (const std::uint8_t a) noexcept
	Alpha.

std::uint8_t	r () const noexcept
	Get red.

std::uint8_t	g () const noexcept
	Get green.

std::uint8_t	b () const noexcept
	Get blue.

std::uint8_t	a () const noexcept
	Get alpha.

void	set_from_norm (const glm::vec4 &rgba) noexcept
	Set RGBA from normalizaed values.

glm::vec4	normalize () noexcept
	Get normalized rgba vec4.

std::array< std::uint8_t, 4 >	array () noexcept
	Get as array.

auto	operator<=> (const Colour &) const =default
	Three-way comparison.

bool	operator== (const Colour &) const =default
	Equality comparison.

bool	operator!= (const Colour &) const =default
	Inequality comparison.

bool	operator< (const Colour &) const =default
	Less than comparison.

bool	operator> (const Colour &) const =default
	Greater than comparison.

bool	operator<= (const Colour &) const =default
	Less than or equal comparison.

bool	operator>= (const Colour &) const =default
	Greater than or equal comparison.

Static Public Attributes
static const constexpr std::uint8_t	OPAQUE = 255
	Opaque colour.

static const constexpr std::uint8_t	TRANSPARENT = 0
	Transparent colour.

static const constexpr std::uint8_t	OFFSET = 0xFF
	Colour offsets for normalization.

static const constexpr std::uint8_t	LOWER = 0
	Colour lower bounds.

static const constexpr std::uint8_t	UPPER = 255
	Colour upper bounds.

Private Attributes
std::uint8_t	m_red
	Red channel.

std::uint8_t	m_green
	Green channel.

std::uint8_t	m_blue
	Blue channel.

std::uint8_t	m_alpha
	Alpha channel.

Detailed Description

Represents an RGBA colour.

Definition at line 23 of file Colour.hpp.

Constructor & Destructor Documentation

◆ Colour() [1/4]

galaxy::Colour::Colour ( )

noexcept

Constructor.

Definition at line 16 of file Colour.cpp.

◆ Colour() [2/4]

galaxy::Colour::Colour	(	const std::uint8_t	r,
		const std::uint8_t	g,
		const std::uint8_t	b,
		const std::uint8_t	a = OPAQUE )

noexcept

Colour constructor.

Parameters

r	Red. 0 - 255.
g	Green. 0 - 255.
b	Blue. 0 - 255.
a	Alpha. 0 - 255.

Definition at line 24 of file Colour.cpp.

◆ Colour() [3/4]

galaxy::Colour::Colour ( Colour && c )

noexcept

Move constructor.

Definition at line 32 of file Colour.cpp.

◆ Colour() [4/4]

galaxy::Colour::Colour ( const Colour & c )

noexcept

Copy constructor.

Definition at line 40 of file Colour.cpp.

◆ ~Colour()

galaxy::Colour::~Colour ( )

noexcept

Destructor.

Definition at line 74 of file Colour.cpp.

Member Function Documentation

◆ operator=() [1/2]

Colour & galaxy::Colour::operator= ( Colour && c )

noexcept

Move assignment operator.

Definition at line 48 of file Colour.cpp.

◆ operator=() [2/2]

Colour & galaxy::Colour::operator= ( const Colour & w )

noexcept

Copy assignment operator.

Definition at line 61 of file Colour.cpp.

◆ r() [1/2]

void galaxy::Colour::r ( const std::uint8_t r )

noexcept

Red.

Parameters

r 0 - 255.

Definition at line 78 of file Colour.cpp.

Here is the caller graph for this function:

◆ g() [1/2]

void galaxy::Colour::g ( const std::uint8_t g )

noexcept

Green.

Parameters

g 0 - 255.

Definition at line 83 of file Colour.cpp.

Here is the caller graph for this function:

◆ b() [1/2]

void galaxy::Colour::b ( const std::uint8_t b )

noexcept

Blue.

Parameters

b 0 - 255.

Definition at line 88 of file Colour.cpp.

Here is the caller graph for this function:

◆ a() [1/2]

void galaxy::Colour::a ( const std::uint8_t a )

noexcept

Alpha.

Parameters

a 0 - 255.

Definition at line 93 of file Colour.cpp.

Here is the caller graph for this function:

◆ r() [2/2]

std::uint8_t galaxy::Colour::r ( ) const

noexcept

Get red.

Returns: Int in 0 - 255 range.

Definition at line 98 of file Colour.cpp.

Here is the caller graph for this function:

◆ g() [2/2]

std::uint8_t galaxy::Colour::g ( ) const

noexcept

Get green.

Returns: Int in 0 - 255 range.

Definition at line 103 of file Colour.cpp.

Here is the caller graph for this function:

◆ b() [2/2]

std::uint8_t galaxy::Colour::b ( ) const

noexcept

Get blue.

Returns: Int in 0 - 255 range.

Definition at line 108 of file Colour.cpp.

Here is the caller graph for this function:

◆ a() [2/2]

std::uint8_t galaxy::Colour::a ( ) const

noexcept

Get alpha.

Returns: Int in 0 - 255 range.

Definition at line 113 of file Colour.cpp.

Here is the caller graph for this function:

◆ set_from_norm()

void galaxy::Colour::set_from_norm ( const glm::vec4 & rgba )

noexcept

Set RGBA from normalizaed values.

Parameters

rgba	Clamps from 0.0f to 1.0f.

Definition at line 118 of file Colour.cpp.

Here is the caller graph for this function:

◆ normalize()

glm::vec4 galaxy::Colour::normalize ( )

nodiscardnoexcept

Get normalized rgba vec4.

Returns: Vec4 normalized to 0.0f - 1.0f.

Definition at line 126 of file Colour.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ array()

std::array< std::uint8_t, 4 > galaxy::Colour::array ( )

nodiscardnoexcept

Get as array.

Returns: 0=red, 1=green, 2=blue, 3=alpha

Definition at line 138 of file Colour.cpp.

Here is the caller graph for this function:

◆ operator<=>()

auto galaxy::Colour::operator<=> ( const Colour & ) const

default

Three-way comparison.

◆ operator==()

bool galaxy::Colour::operator== ( const Colour & ) const

default

Equality comparison.

◆ operator!=()

bool galaxy::Colour::operator!= ( const Colour & ) const

default

Inequality comparison.

◆ operator<()

bool galaxy::Colour::operator< ( const Colour & ) const

default

Less than comparison.

◆ operator>()

bool galaxy::Colour::operator> ( const Colour & ) const

default

Greater than comparison.

◆ operator<=()

bool galaxy::Colour::operator<= ( const Colour & ) const

default

Less than or equal comparison.

◆ operator>=()

bool galaxy::Colour::operator>= ( const Colour & ) const

default

Greater than or equal comparison.

Member Data Documentation

◆ OPAQUE

const constexpr std::uint8_t galaxy::Colour::OPAQUE = 255

inlinestaticconstexpr

Opaque colour.

Definition at line 29 of file Colour.hpp.

◆ TRANSPARENT

const constexpr std::uint8_t galaxy::Colour::TRANSPARENT = 0

inlinestaticconstexpr

Transparent colour.

Definition at line 34 of file Colour.hpp.

◆ OFFSET

const constexpr std::uint8_t galaxy::Colour::OFFSET = 0xFF

inlinestaticconstexpr

Colour offsets for normalization.

Definition at line 39 of file Colour.hpp.

◆ LOWER

const constexpr std::uint8_t galaxy::Colour::LOWER = 0

inlinestaticconstexpr

Colour lower bounds.

Definition at line 44 of file Colour.hpp.

◆ UPPER

const constexpr std::uint8_t galaxy::Colour::UPPER = 255

inlinestaticconstexpr

Colour upper bounds.

Definition at line 49 of file Colour.hpp.

◆ m_red

std::uint8_t galaxy::Colour::m_red

private

Red channel.

Definition at line 210 of file Colour.hpp.

◆ m_green

std::uint8_t galaxy::Colour::m_green

private

Green channel.

Definition at line 215 of file Colour.hpp.

◆ m_blue

std::uint8_t galaxy::Colour::m_blue

private

Blue channel.

Definition at line 220 of file Colour.hpp.

◆ m_alpha

std::uint8_t galaxy::Colour::m_alpha

private

Alpha channel.

Definition at line 225 of file Colour.hpp.

The documentation for this class was generated from the following files:

galaxy/src/galaxy/graphics/Colour.hpp
galaxy/src/galaxy/graphics/Colour.cpp
