galaxy::VertexBuffer Class Reference

Abstraction for OpenGL vertex buffer objects. More...

#include <VertexBuffer.hpp>

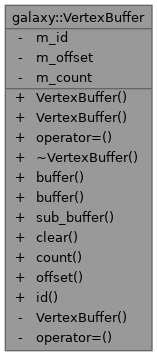

Collaboration diagram for galaxy::VertexBuffer:

Public Member Functions
	VertexBuffer ()
	Constructor.
	VertexBuffer (VertexBuffer &&) noexcept
	Move constructor.
VertexBuffer &	operator= (VertexBuffer &&) noexcept
	Move assignment operator.
	~VertexBuffer ()
	Destructor.
void	buffer (std::span< Vertex > vertices, std::span< unsigned int > indices)
	Create vertex buffer.
void	reserve (const int vertex_count, const int index_count)
	Create vertex buffer without uploading.
void	sub_buffer (const unsigned int vi, const int vertex_size, const std::span< Vertex > vertices, const unsigned int ei, const int index_size, std::span< unsigned int > indices) const
	Sub-buffer vertex buffer.
void	sub_buffer_vertices (const unsigned int vi, const int vertex_size, const std::span< Vertex > vertices) const
	Sub-buffer vertex buffer.
void	sub_buffer_indices (const unsigned int ei, const int index_size, std::span< unsigned int > indices) const
	Sub-buffer element/index buffer.
void	erase (const unsigned int vi, const int vertex_count, const unsigned int ei, const int index_count) const
	Erase a specfic segment of data.
void	clear () const
	Clear buffer data.
int	count () const noexcept
	Get the index count.
void *	offset () noexcept
	Gets index offset.
unsigned int	id () const noexcept
	Get OpenGL handle.

Private Member Functions
	VertexBuffer (const VertexBuffer &)=delete
	Copy constructor.
VertexBuffer &	operator= (const VertexBuffer &)=delete
	Copy assignment operator.

Private Attributes
unsigned int	m_id
	ID returned by OpenGL when generating buffer.
std::size_t	m_offset
	Index buffer offset.
int	m_count
	Index buffer count.

Detailed Description

Abstraction for OpenGL vertex buffer objects.

Definition at line 20 of file VertexBuffer.hpp.

Constructor & Destructor Documentation

VertexBuffer() [1/3]

galaxy::VertexBuffer::VertexBuffer

(

)

Constructor.

Definition at line 14 of file VertexBuffer.cpp.

VertexBuffer() [2/3]

galaxy::VertexBuffer::VertexBuffer ( VertexBuffer && v )

noexcept

Move constructor.

Definition at line 22 of file VertexBuffer.cpp.

~VertexBuffer()

galaxy::VertexBuffer::~VertexBuffer

(

)

Destructor.

Definition at line 55 of file VertexBuffer.cpp.

VertexBuffer() [3/3]

galaxy::VertexBuffer::VertexBuffer ( const VertexBuffer & )

privatedelete

Copy constructor.

Member Function Documentation

operator=() [1/2]

VertexBuffer & galaxy::VertexBuffer::operator= ( VertexBuffer && v )

noexcept

Move assignment operator.

Definition at line 36 of file VertexBuffer.cpp.

buffer()

void galaxy::VertexBuffer::buffer	(	std::span< Vertex >	vertices,
		std::span< unsigned int >	indices )

Create vertex buffer.

Parameters

vertices	Vertices to assign.
indices	Indices for vertex buffer.

Definition at line 63 of file VertexBuffer.cpp.

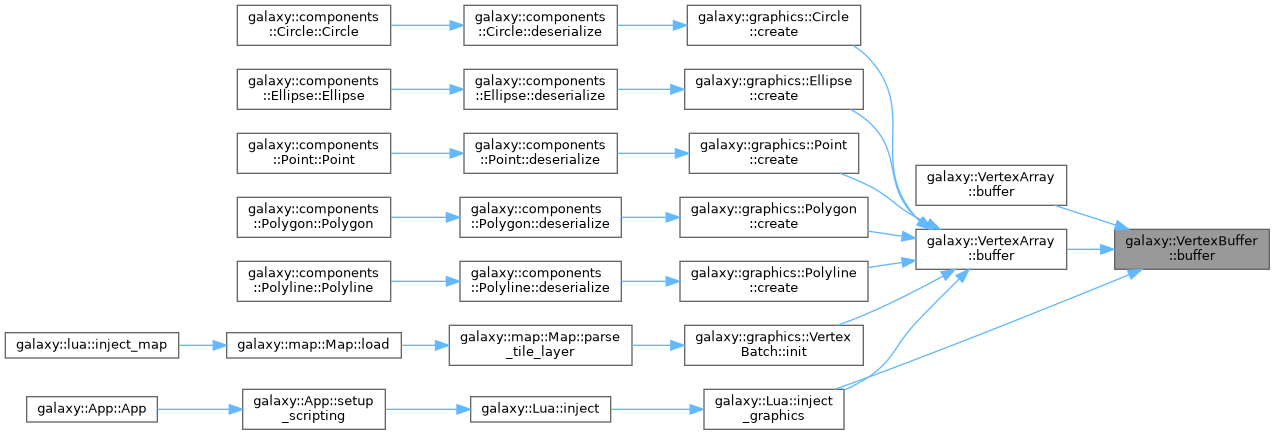

Here is the caller graph for this function:

reserve()

void galaxy::VertexBuffer::reserve	(	const int	vertex_count,
		const int	index_count )

Create vertex buffer without uploading.

Parameters

vertex_count	Number of vertices.
index_count	Number of indices.

Definition at line 74 of file VertexBuffer.cpp.

Here is the caller graph for this function:

sub_buffer()

void galaxy::VertexBuffer::sub_buffer	(	const unsigned int	vi,
		const int	vertex_size,
		const std::span< Vertex >	vertices,
		const unsigned int	ei,
		const int	index_size,
		std::span< unsigned int >	indices ) const

Sub-buffer vertex buffer.

Parameters

vi	Offset to start at from initial vertices. 0 = first.
vertex_size	Amount of vertex data to sub buffer.
vertices	Vertices to assign.
ei	Offset to start at from initial indices. 0 = first.
index_size	Amount of index data to sub buffer.
indices	Indices to assign.

Definition at line 85 of file VertexBuffer.cpp.

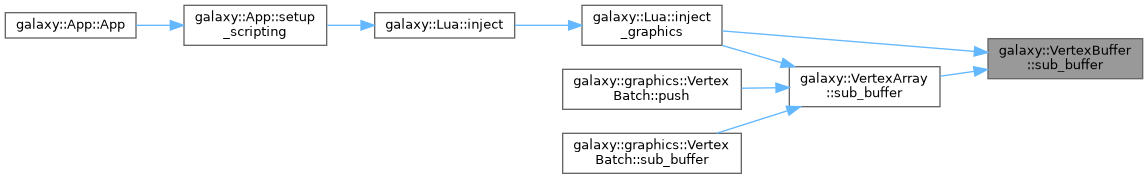

Here is the caller graph for this function:

sub_buffer_vertices()

void galaxy::VertexBuffer::sub_buffer_vertices	(	const unsigned int	vi,
		const int	vertex_size,
		const std::span< Vertex >	vertices ) const

Sub-buffer vertex buffer.

Parameters

vi	Offset to start at from initial vertices. 0 = first.
vertex_size	Amount of vertex data to sub buffer.
vertices	Vertices to assign.

Definition at line 98 of file VertexBuffer.cpp.

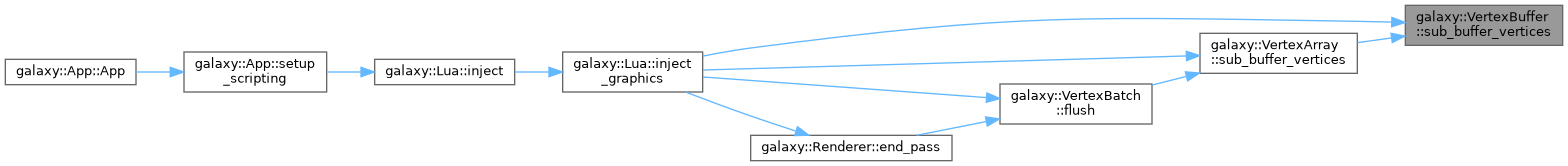

Here is the caller graph for this function:

sub_buffer_indices()

void galaxy::VertexBuffer::sub_buffer_indices	(	const unsigned int	ei,
		const int	index_size,
		std::span< unsigned int >	indices ) const

Sub-buffer element/index buffer.

Parameters

ei	Offset to start at from initial indices. 0 = first.
index_size	Amount of index data to sub buffer.
indices	Indices to assign.

Definition at line 103 of file VertexBuffer.cpp.

Here is the caller graph for this function:

erase()

void galaxy::VertexBuffer::erase	(	const unsigned int	vi,
		const int	vertex_count,
		const unsigned int	ei,
		const int	index_count ) const

Erase a specfic segment of data.

Parameters

vi	Offset to start at from initial vertices. 0 = first.
vertex_count	Number of vertices.
ei	Offset to start at from initial indices. 0 = first.
index_count	Number of indices.

Definition at line 108 of file VertexBuffer.cpp.

Here is the caller graph for this function:

clear()

void galaxy::VertexBuffer::clear

(

)

const

Clear buffer data.

Definition at line 114 of file VertexBuffer.cpp.

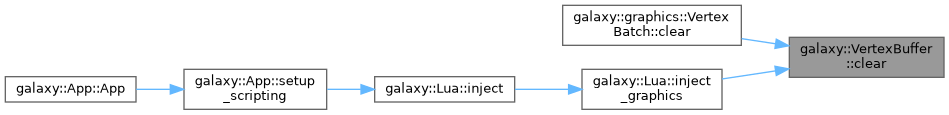

Here is the caller graph for this function:

count()

int galaxy::VertexBuffer::count ( ) const

nodiscardnoexcept

Get the index count.

Returns

Integer.

Definition at line 122 of file VertexBuffer.cpp.

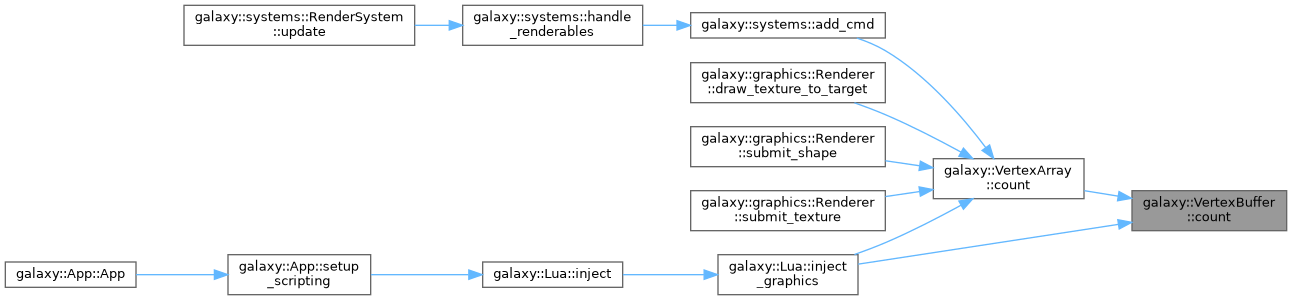

Here is the caller graph for this function:

offset()

void * galaxy::VertexBuffer::offset ( )

nodiscardnoexcept

Gets index offset.

Returns

Integer as void pointer for opengl shenanigans.

Definition at line 127 of file VertexBuffer.cpp.

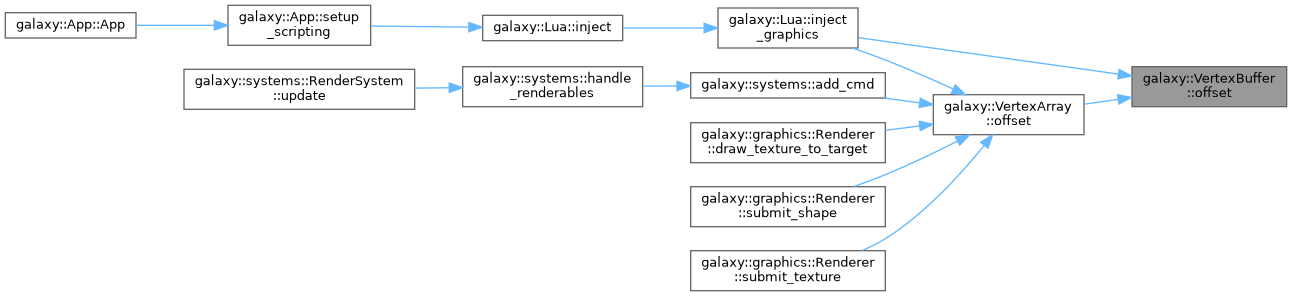

Here is the caller graph for this function:

id()

unsigned int galaxy::VertexBuffer::id ( ) const

nodiscardnoexcept

Get OpenGL handle.

Returns

Unsigned integer.

Definition at line 132 of file VertexBuffer.cpp.

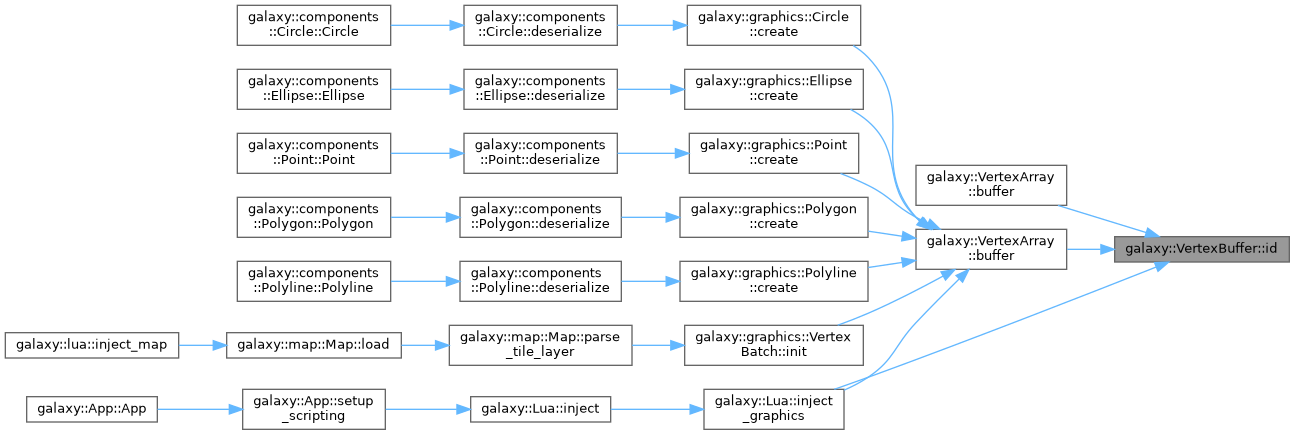

Here is the caller graph for this function:

operator=() [2/2]

VertexBuffer & galaxy::VertexBuffer::operator= ( const VertexBuffer & )

privatedelete

Copy assignment operator.

Member Data Documentation

m_id

unsigned int galaxy::VertexBuffer::m_id

private

ID returned by OpenGL when generating buffer.

Definition at line 149 of file VertexBuffer.hpp.

m_offset

std::size_t galaxy::VertexBuffer::m_offset

private

Index buffer offset.

Definition at line 154 of file VertexBuffer.hpp.

m_count

int galaxy::VertexBuffer::m_count

private

Index buffer count.

Definition at line 159 of file VertexBuffer.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/graphics/gl/VertexBuffer.hpp
• galaxy/src/galaxy/graphics/gl/VertexBuffer.cpp
