galaxy::MouseWheel Struct Reference

Contains mouse wheel movement data. More...

#include <MouseWheel.hpp>

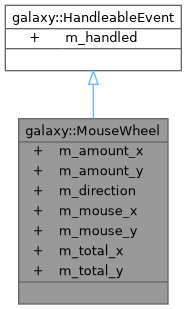

Inheritance diagram for galaxy::MouseWheel:

Collaboration diagram for galaxy::MouseWheel:

Public Attributes
float	m_amount_x = 0.0f
	The amount scrolled horizontally, positive to the right and negative to the left.
float	m_amount_y = 0.0f
	The amount scrolled vertically, positive away from the user and negative toward the user.
SDL_MouseWheelDirection	m_direction = SDL_MOUSEWHEEL_NORMAL
	When FLIPPED the values in X and Y will be opposite. Multiply by -1 to change them back.
float	m_mouse_x = 0.0f
	X coordinate, relative to window.
float	m_mouse_y = 0.0f
	Y coordinate, relative to window.
int	m_total_x = 0
	The amount scrolled horizontally, accumulated to whole scroll "ticks".
int	m_total_y = 0
	The amount scrolled vertically, accumulated to whole scroll "ticks".
Public Attributes inherited from galaxy::HandleableEvent
bool	m_handled = false
	Has this event been handled/consumed/processed already.

Detailed Description

Contains mouse wheel movement data.

Definition at line 19 of file MouseWheel.hpp.

Member Data Documentation

m_amount_x

float galaxy::MouseWheel::m_amount_x = 0.0f

The amount scrolled horizontally, positive to the right and negative to the left.

Definition at line 24 of file MouseWheel.hpp.

m_amount_y

float galaxy::MouseWheel::m_amount_y = 0.0f

The amount scrolled vertically, positive away from the user and negative toward the user.

Definition at line 29 of file MouseWheel.hpp.

m_direction

SDL_MouseWheelDirection galaxy::MouseWheel::m_direction = SDL_MOUSEWHEEL_NORMAL

When FLIPPED the values in X and Y will be opposite. Multiply by -1 to change them back.

Definition at line 35 of file MouseWheel.hpp.

m_mouse_x

float galaxy::MouseWheel::m_mouse_x = 0.0f

X coordinate, relative to window.

Definition at line 40 of file MouseWheel.hpp.

m_mouse_y

float galaxy::MouseWheel::m_mouse_y = 0.0f

Y coordinate, relative to window.

Definition at line 45 of file MouseWheel.hpp.

m_total_x

int galaxy::MouseWheel::m_total_x = 0

The amount scrolled horizontally, accumulated to whole scroll "ticks".

Definition at line 50 of file MouseWheel.hpp.

m_total_y

int galaxy::MouseWheel::m_total_y = 0

The amount scrolled vertically, accumulated to whole scroll "ticks".

Definition at line 55 of file MouseWheel.hpp.

---

The documentation for this struct was generated from the following file:

• galaxy/src/galaxy/events/MouseWheel.hpp
