galaxy::ShaderBuffer Class Reference

OpenGL Shader storage buffer. More...

#include <ShaderBuffer.hpp>

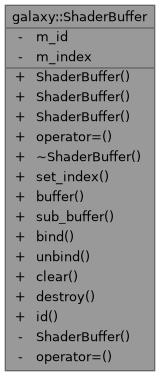

Collaboration diagram for galaxy::ShaderBuffer:

Public Member Functions
	ShaderBuffer ()
	Constructor.
	ShaderBuffer (const GLBufferBinding index)
	Constructor.
	ShaderBuffer (ShaderBuffer &&) noexcept
	Move constructor.
ShaderBuffer &	operator= (ShaderBuffer &&) noexcept
	Move assignment operator.
	~ShaderBuffer ()
	Destructor.
void	set_index (const GLBufferBinding index)
	Set vertex shader binding point.
template<typename Object >
void	buffer (const unsigned int count, Object *data)
	Buffer data.
template<typename Object >
void	sub_buffer (const unsigned int offset, const unsigned int count, Object *data)
	Sub buffer data.
void	bind () const
	Bind buffer.
void	unbind () const
	Unbind buffer.
void	clear () const
	Clears data from buffer.
void	destroy ()
	Destroy shader.
unsigned int	id () const noexcept
	Get OpenGL handle.

Private Member Functions
	ShaderBuffer (const ShaderBuffer &)=delete
	Copy constructor.
ShaderBuffer &	operator= (const ShaderBuffer &)=delete
	Copy assignment operator.

Private Attributes
unsigned int	m_id
	OpenGL handle.
int	m_index
	Index binding of SSBO in vertex shader.

Detailed Description

OpenGL Shader storage buffer.

Definition at line 20 of file ShaderBuffer.hpp.

Constructor & Destructor Documentation

ShaderBuffer() [1/4]

galaxy::ShaderBuffer::ShaderBuffer

(

)

Constructor.

You must call set_index() if you use default constructor.

Definition at line 14 of file ShaderBuffer.cpp.

ShaderBuffer() [2/4]

galaxy::ShaderBuffer::ShaderBuffer

(

const GLBufferBinding

index

)

Constructor.

Parameters

index

Index binding that needs to match in vertex shader.

Definition at line 21 of file ShaderBuffer.cpp.

ShaderBuffer() [3/4]

galaxy::ShaderBuffer::ShaderBuffer ( ShaderBuffer && s )

noexcept

Move constructor.

Definition at line 28 of file ShaderBuffer.cpp.

~ShaderBuffer()

galaxy::ShaderBuffer::~ShaderBuffer

(

)

Destructor.

Definition at line 53 of file ShaderBuffer.cpp.

Here is the call graph for this function:

ShaderBuffer() [4/4]

galaxy::ShaderBuffer::ShaderBuffer ( const ShaderBuffer & )

privatedelete

Copy constructor.

Member Function Documentation

operator=() [1/2]

ShaderBuffer & galaxy::ShaderBuffer::operator= ( ShaderBuffer && s )

noexcept

Move assignment operator.

Definition at line 38 of file ShaderBuffer.cpp.

set_index()

void galaxy::ShaderBuffer::set_index

(

const GLBufferBinding

index

)

Set vertex shader binding point.

Parameters

index

Index binding that needs to match in vertex shader.

Definition at line 58 of file ShaderBuffer.cpp.

buffer()

template<typename Object >

void galaxy::ShaderBuffer::buffer ( const unsigned int count, Object * data )

inline

Buffer data.

Template Parameters

Object

The data structure to use with this buffer.

Parameters

count	Number of objects in data.
data	Pointer to the data to buffer.

Definition at line 134 of file ShaderBuffer.hpp.

Here is the call graph for this function:

sub_buffer()

template<typename Object >

void galaxy::ShaderBuffer::sub_buffer ( const unsigned int offset, const unsigned int count, Object * data )

inline

Sub buffer data.

Template Parameters

Object

The data structure to use with this buffer.

Parameters

offset	Offset to start adding buffer from.
count	Number of objects in data.
data	Pointer to the data to buffer.

Definition at line 143 of file ShaderBuffer.hpp.

bind()

void galaxy::ShaderBuffer::bind

(

)

const

Bind buffer.

Definition at line 63 of file ShaderBuffer.cpp.

unbind()

void galaxy::ShaderBuffer::unbind

(

)

const

Unbind buffer.

Definition at line 73 of file ShaderBuffer.cpp.

clear()

void galaxy::ShaderBuffer::clear

(

)

const

Clears data from buffer.

Definition at line 78 of file ShaderBuffer.cpp.

Here is the caller graph for this function:

destroy()

void galaxy::ShaderBuffer::destroy

(

)

Destroy shader.

Definition at line 86 of file ShaderBuffer.cpp.

Here is the caller graph for this function:

id()

unsigned int galaxy::ShaderBuffer::id ( ) const

nodiscardnoexcept

Get OpenGL handle.

Returns

Unsigned integer.

Definition at line 95 of file ShaderBuffer.cpp.

operator=() [2/2]

ShaderBuffer & galaxy::ShaderBuffer::operator= ( const ShaderBuffer & )

privatedelete

Copy assignment operator.

Member Data Documentation

m_id

unsigned int galaxy::ShaderBuffer::m_id

private

OpenGL handle.

Definition at line 125 of file ShaderBuffer.hpp.

m_index

int galaxy::ShaderBuffer::m_index

private

Index binding of SSBO in vertex shader.

Definition at line 130 of file ShaderBuffer.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/graphics/gl/ShaderBuffer.hpp
• galaxy/src/galaxy/graphics/gl/ShaderBuffer.cpp
