galaxy::media::Video Class Reference

Plays an MPEG-1 video. More...

#include <Video.hpp>

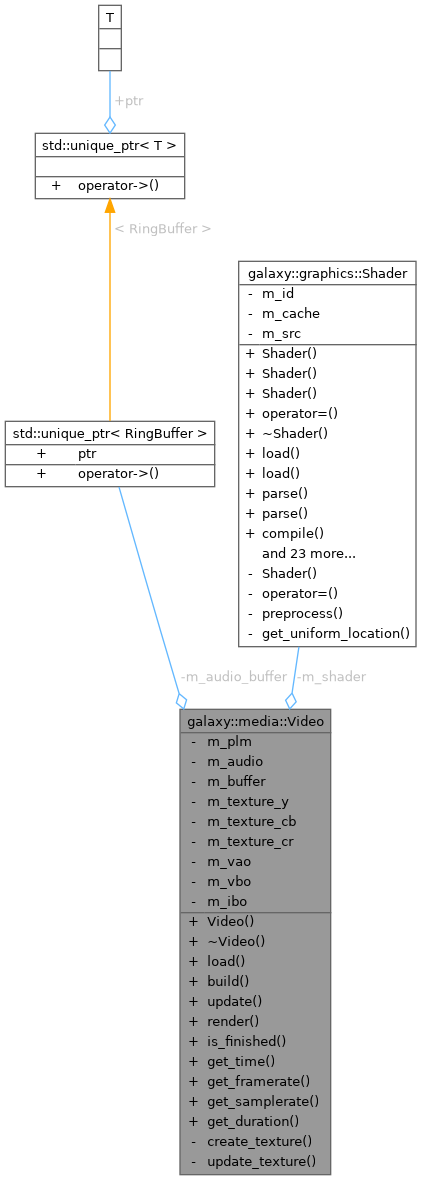

Collaboration diagram for galaxy::media::Video:

Public Member Functions
	Video ()
	Constructor.
	~Video ()
	Destructor.
bool	load (const std::string &file)
	Load a MPEG-1 from video file.
void	build ()
	Build opengl data.
void	update ()
	Update video decoder.
void	render ()
	Render video.
bool	is_finished () const
	Check if video is finished.
double	get_time () const
	Get current playtime.
double	get_framerate () const
	Get video framerate.
int	get_samplerate () const
	Get video sample rate.
double	get_duration () const
	Get video duration.

Private Member Functions
unsigned int	create_texture (unsigned int index, const char *uniform)
	Internal function to generate video frame texture.
void	update_texture (unsigned int unit, unsigned int texture, const plm_plane_t *plane)
	Internal function to update video frame data.

Private Attributes
plm_t *	m_plm
	PLM decoder data.
ma_device *	m_audio
	Audio data.
meta::vector< uint8_t >	m_buffer
	Video data buffer.
std::unique_ptr< RingBuffer >	m_audio_buffer
	Buffer for audio decoding.
unsigned int	m_texture_y
	PLM video frame y.
unsigned int	m_texture_cb
	PLM video frame cb.
unsigned int	m_texture_cr
	PLM video frame cr.
unsigned int	m_vao
	PLM video frame vertex array object.
unsigned int	m_vbo
	PLM video frame vertex buffer.
unsigned int	m_ibo
	PLM video frame index buffer.
graphics::Shader	m_shader
	PLM video shader.

Detailed Description

Plays an MPEG-1 video.

No audio support yet.

Definition at line 26 of file Video.hpp.

Constructor & Destructor Documentation

Video()

galaxy::media::Video::Video

(

)

Constructor.

Definition at line 48 of file Video.cpp.

~Video()

galaxy::media::Video::~Video

(

)

Destructor.

Definition at line 61 of file Video.cpp.

Member Function Documentation

load()

bool galaxy::media::Video::load ( const std::string & file )

nodiscard

Load a MPEG-1 from video file.

Parameters

file	File to load.

Returns

True if successful.

Definition at line 101 of file Video.cpp.

Here is the call graph for this function:

build()

void galaxy::media::Video::build

(

)

Build opengl data.

Definition at line 178 of file Video.cpp.

Here is the call graph for this function:

update()

void galaxy::media::Video::update

(

)

Update video decoder.

Definition at line 199 of file Video.cpp.

render()

void galaxy::media::Video::render

(

)

Render video.

Definition at line 212 of file Video.cpp.

Here is the call graph for this function:

is_finished()

bool galaxy::media::Video::is_finished ( ) const

nodiscard

Check if video is finished.

Returns

True if finished.

Definition at line 221 of file Video.cpp.

get_time()

double galaxy::media::Video::get_time ( ) const

nodiscard

Get current playtime.

Returns

In seconds.

Definition at line 231 of file Video.cpp.

get_framerate()

double galaxy::media::Video::get_framerate ( ) const

nodiscard

Get video framerate.

Returns

Double.

Definition at line 241 of file Video.cpp.

get_samplerate()

int galaxy::media::Video::get_samplerate ( ) const

nodiscard

Get video sample rate.

Returns

Int.

Definition at line 251 of file Video.cpp.

get_duration()

double galaxy::media::Video::get_duration ( ) const

nodiscard

Get video duration.

Returns

Double.

Definition at line 261 of file Video.cpp.

create_texture()

unsigned int galaxy::media::Video::create_texture ( unsigned int index, const char * uniform )

private

Internal function to generate video frame texture.

Parameters

index	Sampler index.
uniform	Shader uniform index.

Returns

Returns created texture id from OpenGL.

Definition at line 271 of file Video.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

update_texture()

void galaxy::media::Video::update_texture ( unsigned int unit, unsigned int texture, const plm_plane_t * plane )

private

Internal function to update video frame data.

Parameters

unit	Texture unit.
texture	GL texture handle.
plane	PLM decoder data.

Definition at line 292 of file Video.cpp.

Here is the caller graph for this function:

Member Data Documentation

m_plm

plm_t* galaxy::media::Video::m_plm

private

PLM decoder data.

Definition at line 128 of file Video.hpp.

m_audio

ma_device* galaxy::media::Video::m_audio

private

Audio data.

Definition at line 133 of file Video.hpp.

m_buffer

meta::vector<uint8_t> galaxy::media::Video::m_buffer

private

Video data buffer.

Definition at line 138 of file Video.hpp.

m_audio_buffer

std::unique_ptr<RingBuffer> galaxy::media::Video::m_audio_buffer

private

Buffer for audio decoding.

Definition at line 143 of file Video.hpp.

m_texture_y

unsigned int galaxy::media::Video::m_texture_y

private

PLM video frame y.

Definition at line 148 of file Video.hpp.

m_texture_cb

unsigned int galaxy::media::Video::m_texture_cb

private

PLM video frame cb.

Definition at line 153 of file Video.hpp.

m_texture_cr

unsigned int galaxy::media::Video::m_texture_cr

private

PLM video frame cr.

Definition at line 158 of file Video.hpp.

m_vao

unsigned int galaxy::media::Video::m_vao

private

PLM video frame vertex array object.

Definition at line 163 of file Video.hpp.

m_vbo

unsigned int galaxy::media::Video::m_vbo

private

PLM video frame vertex buffer.

Definition at line 168 of file Video.hpp.

m_ibo

unsigned int galaxy::media::Video::m_ibo

private

PLM video frame index buffer.

Definition at line 173 of file Video.hpp.

m_shader

graphics::Shader galaxy::media::Video::m_shader

private

PLM video shader.

Definition at line 178 of file Video.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/graphics/Video.hpp
• galaxy/src/galaxy/graphics/Video.cpp
