galaxy::Texture Class Reference

Bindless OpenGL 2D Texture. More...

#include <Texture.hpp>

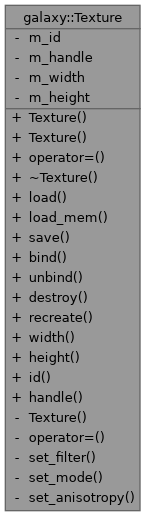

Collaboration diagram for galaxy::Texture:

Public Member Functions
	Texture ()
	Constructor.
	Texture (Texture &&) noexcept
	Move constructor.
Texture &	operator= (Texture &&) noexcept
	Move assignment operator.
	~Texture ()
	Destructor.
bool	load (const std::string &file)
	Load a texture from vfs.
bool	load_mem (std::span< std::uint8_t > buffer)
	Loads texture from memory.
void	save (std::string_view file)
	Saves texture to file on disk.
void	bind () const noexcept
	Bind to sampler.
void	unbind () const noexcept
	Deactivate sampler.
void	destroy ()
	Destroy texture.
void	recreate ()
	Deletes texture data and configuration in OpenGL.
float	width () const noexcept
	Get texture width.
float	height () const noexcept
	Get texture height.
unsigned int	id () const noexcept
	Get OpenGL texture id.
std::uint64_t	handle () const noexcept
	Get OpenGL bindless handle.

Private Member Functions
	Texture (const Texture &)=delete
	Copy constructor.
Texture &	operator= (const Texture &)=delete
	Copy assignment operator.
void	set_filter () const noexcept
	Sets filter when texture is (up/down)scaled in OpenGL.
void	set_mode () const noexcept
	Set texture mode.
void	set_anisotropy () const noexcept
	Set ansiotropic filtering level.

Private Attributes
unsigned int	m_id
	OpenGL id.
std::uint64_t	m_handle
	Bindless handle.
int	m_width
	Texture width.
int	m_height
	Texture height.

Detailed Description

Bindless OpenGL 2D Texture.

https://ktstephano.github.io/rendering/opengl/bindless

Definition at line 21 of file Texture.hpp.

Constructor & Destructor Documentation

Texture() [1/3]

galaxy::Texture::Texture

(

)

Constructor.

Definition at line 28 of file Texture.cpp.

Texture() [2/3]

galaxy::Texture::Texture ( Texture && t )

noexcept

Move constructor.

Definition at line 37 of file Texture.cpp.

~Texture()

galaxy::Texture::~Texture

(

)

Destructor.

Definition at line 68 of file Texture.cpp.

Here is the call graph for this function:

Texture() [3/3]

galaxy::Texture::Texture ( const Texture & )

privatedelete

Copy constructor.

Member Function Documentation

operator=() [1/2]

Texture & galaxy::Texture::operator= ( Texture && t )

noexcept

Move assignment operator.

Definition at line 50 of file Texture.cpp.

load()

bool galaxy::Texture::load ( const std::string & file )

nodiscard

Load a texture from vfs.

Parameters

file	Texture in VFS to load.

Returns

True if texture loaded successfully.

Definition at line 73 of file Texture.cpp.

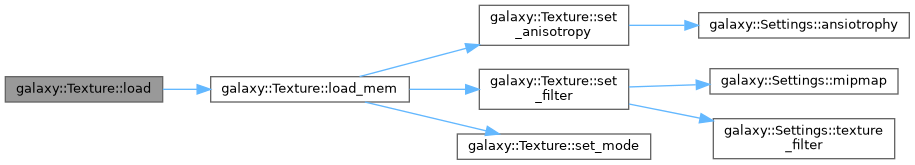

Here is the call graph for this function:

Here is the caller graph for this function:

load_mem()

bool galaxy::Texture::load_mem ( std::span< std::uint8_t > buffer )

nodiscard

Loads texture from memory.

Loads from standard 256byte array.

Parameters

buffer

Memory buffer to load from.

Returns

True if texture loaded successfully.

Definition at line 81 of file Texture.cpp.

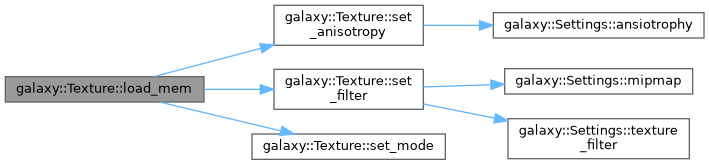

Here is the call graph for this function:

Here is the caller graph for this function:

save()

void galaxy::Texture::save

(

std::string_view

file

)

Saves texture to file on disk.

Parameters

file	Path and filename to save texture to. Does not need extension (it will be ignored).

Definition at line 119 of file Texture.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

bind()

void galaxy::Texture::bind ( ) const

noexcept

Bind to sampler.

Not required because this supports bindless textures.

Definition at line 157 of file Texture.cpp.

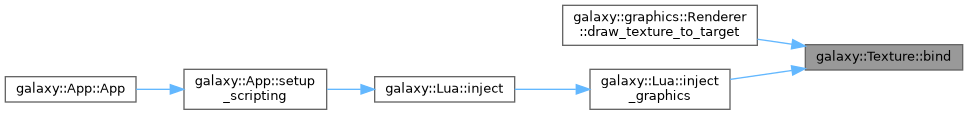

Here is the caller graph for this function:

unbind()

void galaxy::Texture::unbind ( ) const

noexcept

Deactivate sampler.

Definition at line 162 of file Texture.cpp.

Here is the caller graph for this function:

destroy()

void galaxy::Texture::destroy

(

)

Destroy texture.

Definition at line 167 of file Texture.cpp.

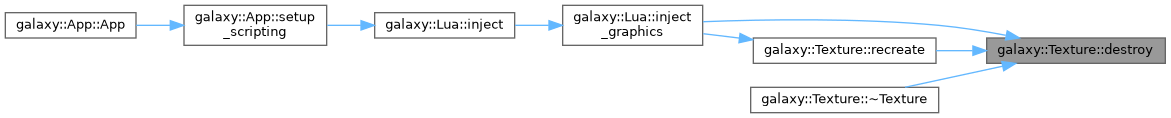

Here is the caller graph for this function:

recreate()

void galaxy::Texture::recreate

(

)

Deletes texture data and configuration in OpenGL.

You need to call load again!

Definition at line 182 of file Texture.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

width()

float galaxy::Texture::width ( ) const

nodiscardnoexcept

Get texture width.

Is cached for performance.

Returns

Width as float.

Definition at line 188 of file Texture.cpp.

Here is the caller graph for this function:

height()

float galaxy::Texture::height ( ) const

nodiscardnoexcept

Get texture height.

Is cached for performance.

Returns

Height as float.

Definition at line 193 of file Texture.cpp.

Here is the caller graph for this function:

id()

unsigned int galaxy::Texture::id ( ) const

nodiscardnoexcept

Get OpenGL texture id.

Returns

Unsigned int.

Definition at line 198 of file Texture.cpp.

Here is the caller graph for this function:

handle()

std::uint64_t galaxy::Texture::handle ( ) const

nodiscardnoexcept

Get OpenGL bindless handle.

Returns

Unsigned long long.

Definition at line 203 of file Texture.cpp.

Here is the caller graph for this function:

operator=() [2/2]

Texture & galaxy::Texture::operator= ( const Texture & )

privatedelete

Copy assignment operator.

set_filter()

void galaxy::Texture::set_filter ( ) const

privatenoexcept

Sets filter when texture is (up/down)scaled in OpenGL.

Includes mipmapping.

Definition at line 208 of file Texture.cpp.

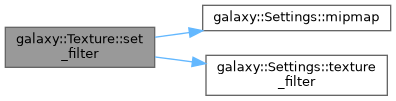

Here is the call graph for this function:

Here is the caller graph for this function:

set_mode()

void galaxy::Texture::set_mode ( ) const

privatenoexcept

Set texture mode.

I.e. REPEAT, CLAMP_TO_EDGE, etc.

Definition at line 245 of file Texture.cpp.

Here is the caller graph for this function:

set_anisotropy()

void galaxy::Texture::set_anisotropy ( ) const

privatenoexcept

Set ansiotropic filtering level.

Definition at line 251 of file Texture.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_id

unsigned int galaxy::Texture::m_id

private

OpenGL id.

Definition at line 167 of file Texture.hpp.

m_handle

std::uint64_t galaxy::Texture::m_handle

private

Bindless handle.

Definition at line 172 of file Texture.hpp.

m_width

int galaxy::Texture::m_width

private

Texture width.

Definition at line 177 of file Texture.hpp.

m_height

int galaxy::Texture::m_height

private

Texture height.

Definition at line 182 of file Texture.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/graphics/gl/Texture.hpp
• galaxy/src/galaxy/graphics/gl/Texture.cpp
