galaxy::Renderer Class Reference

OpenGL 4.6 Renderer that tries to mimic vulkan pipeline. More...

#include <Renderer.hpp>

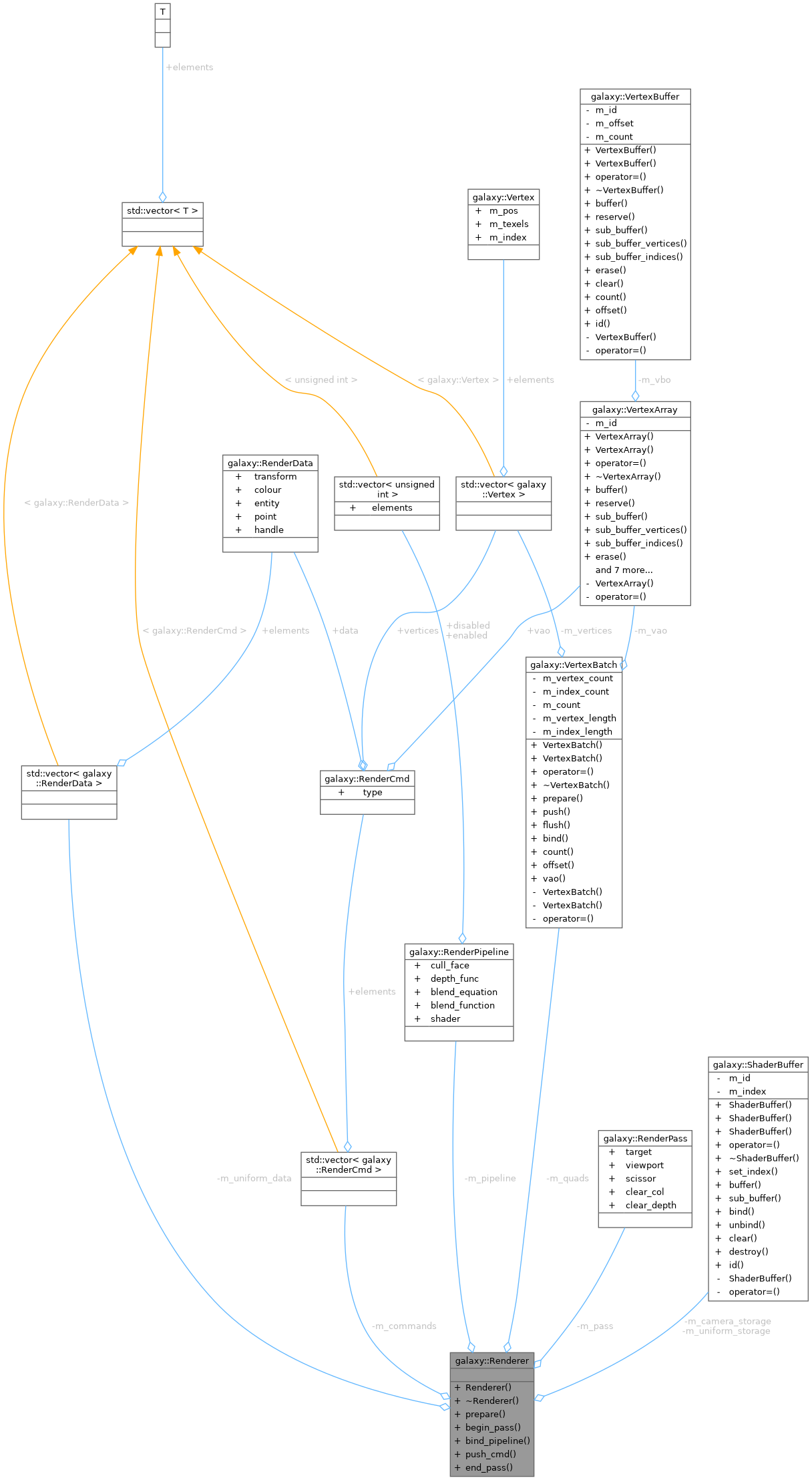

Collaboration diagram for galaxy::Renderer:

Public Member Functions
	Renderer ()
	Constructor.
	~Renderer ()
	Destructor.
void	prepare ()
	Called only in the update loop when we need to refresh data to render.
void	begin_pass (RenderPass &pass)
	Binds framebuffer, viewport, sissor region and clears buffers.
void	bind_pipeline (RenderPipeline &pipeline)
	Binds the GPU state specified in pipeline.
void	push_cmd (RenderCmd &cmd) noexcept
	Push a renderable object.
void	end_pass (Camera &camera)
	Renders everything configured in this pass.

Private Attributes
VertexBatch	m_quads
	Quad vertex batch.
std::vector< RenderCmd >	m_commands
	RenderCmd storage.
RenderPass *	m_pass
	Currently active pass.
RenderPipeline *	m_pipeline
	Currently active pipeline.
ShaderBuffer	m_uniform_storage
	Renderable uniforms buffer.
ShaderBuffer	m_camera_storage
	Camera buffer.
std::vector< RenderData >	m_uniform_data
	Renderable uniform data storage.
unsigned int	m_uniform_data_index
	Uniform data current max index.

Detailed Description

OpenGL 4.6 Renderer that tries to mimic vulkan pipeline.

Definition at line 24 of file Renderer.hpp.

Constructor & Destructor Documentation

Renderer()

galaxy::Renderer::Renderer

(

)

Constructor.

Definition at line 20 of file Renderer.cpp.

Here is the call graph for this function:

~Renderer()

galaxy::Renderer::~Renderer

(

)

Destructor.

Definition at line 36 of file Renderer.cpp.

Member Function Documentation

prepare()

void galaxy::Renderer::prepare

(

)

Called only in the update loop when we need to refresh data to render.

Definition at line 42 of file Renderer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

begin_pass()

void galaxy::Renderer::begin_pass

(

RenderPass &

pass

)

Binds framebuffer, viewport, sissor region and clears buffers.

Call this first.

Parameters

pass	RenderPass to bind.

Definition at line 53 of file Renderer.cpp.

Here is the caller graph for this function:

bind_pipeline()

void galaxy::Renderer::bind_pipeline

(

RenderPipeline &

pipeline

)

Binds the GPU state specified in pipeline.

Call this second.

Parameters

pipeline

RenderPipeline to bind.

Definition at line 66 of file Renderer.cpp.

Here is the caller graph for this function:

push_cmd()

void galaxy::Renderer::push_cmd ( RenderCmd & cmd )

noexcept

Push a renderable object.

Try not to push too many non-quads, only quads are batched.

Parameters

cmd	RenderCmd to draw.

Definition at line 91 of file Renderer.cpp.

Here is the caller graph for this function:

end_pass()

void galaxy::Renderer::end_pass

(

Camera &

camera

)

Renders everything configured in this pass.

Parameters

camera

Projection and view matrix to render this pass with.

Definition at line 116 of file Renderer.cpp.

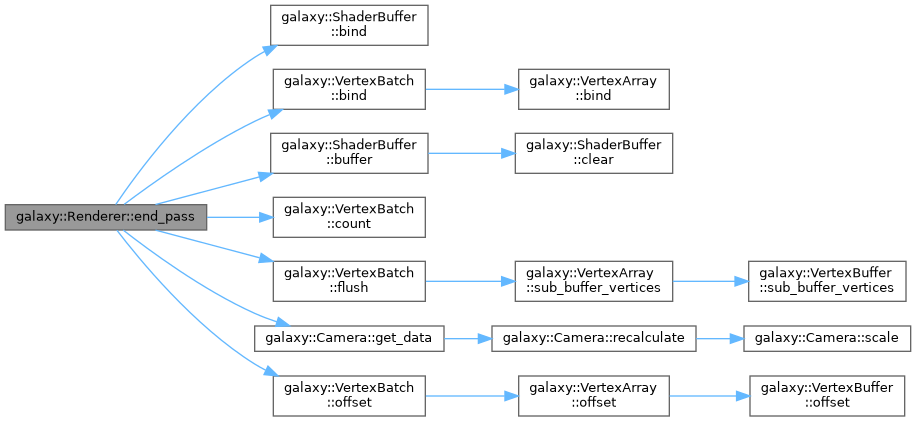

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_quads

VertexBatch galaxy::Renderer::m_quads

private

Quad vertex batch.

Definition at line 80 of file Renderer.hpp.

m_commands

std::vector<RenderCmd> galaxy::Renderer::m_commands

private

RenderCmd storage.

Definition at line 85 of file Renderer.hpp.

m_pass

RenderPass* galaxy::Renderer::m_pass

private

Currently active pass.

Definition at line 90 of file Renderer.hpp.

m_pipeline

RenderPipeline* galaxy::Renderer::m_pipeline

private

Currently active pipeline.

Definition at line 95 of file Renderer.hpp.

m_uniform_storage

ShaderBuffer galaxy::Renderer::m_uniform_storage

private

Renderable uniforms buffer.

Definition at line 100 of file Renderer.hpp.

m_camera_storage

ShaderBuffer galaxy::Renderer::m_camera_storage

private

Camera buffer.

Definition at line 105 of file Renderer.hpp.

m_uniform_data

std::vector<RenderData> galaxy::Renderer::m_uniform_data

private

Renderable uniform data storage.

Definition at line 110 of file Renderer.hpp.

m_uniform_data_index

unsigned int galaxy::Renderer::m_uniform_data_index

private

Uniform data current max index.

Definition at line 115 of file Renderer.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/graphics/Renderer.hpp
• galaxy/src/galaxy/graphics/Renderer.cpp
