galaxy::graphics::Animation Class Reference

2D animation information. More...

#include <Animation.hpp>

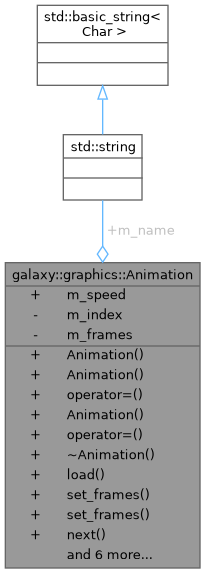

Collaboration diagram for galaxy::graphics::Animation:

Public Member Functions
	Animation ()
	Constructor.
	Animation (Animation &&)
	Move constructor.
Animation &	operator= (Animation &&)
	Move assignment operator.
	Animation (const Animation &)
	Copy constructor.
Animation &	operator= (const Animation &)
	Copy assignment operator.
	~Animation ()
	Destructor.
bool	load (const std::string &file)
	Load a json file from VFS and set frames from that.
void	set_frames (const nlohmann::json &json)
	Loads frames from json object.
void	set_frames (const meta::vector< Frame > &frames)
	Set from an existing vector of frames.
void	next ()
	Advance to the next frame.
void	prev ()
	Go back to the previous frame.
void	restart ()
	Sets animation back to beginning.
Frame &	current ()
	Get currently active frame.
std::size_t	total () const
	Get total frames.
std::size_t	index () const
	Get current frame index.
meta::vector< Frame > &	frames ()
	Get the frames.

Public Attributes
double	m_speed
	Speed of the animation. Multiplier, so 1.0f is regular speed.
std::string	m_name
	Animation name.

Private Attributes
std::size_t	m_index
	Index of the current active frame.
meta::vector< Frame >	m_frames
	Frames belonging to this animation.

Detailed Description

2D animation information.

Definition at line 27 of file Animation.hpp.

Constructor & Destructor Documentation

Animation() [1/3]

galaxy::graphics::Animation::Animation

(

)

Constructor.

Definition at line 19 of file Animation.cpp.

Animation() [2/3]

galaxy::graphics::Animation::Animation

(

Animation &&

a

)

Move constructor.

Definition at line 25 of file Animation.cpp.

Animation() [3/3]

galaxy::graphics::Animation::Animation

(

const Animation &

a

)

Copy constructor.

Definition at line 46 of file Animation.cpp.

~Animation()

galaxy::graphics::Animation::~Animation

(

)

Destructor.

Definition at line 67 of file Animation.cpp.

Member Function Documentation

operator=() [1/2]

Animation & galaxy::graphics::Animation::operator=

(

Animation &&

a

)

Move assignment operator.

Definition at line 33 of file Animation.cpp.

operator=() [2/2]

Animation & galaxy::graphics::Animation::operator=

(

const Animation &

a

)

Copy assignment operator.

Definition at line 54 of file Animation.cpp.

load()

bool galaxy::graphics::Animation::load ( const std::string & file )

nodiscard

Load a json file from VFS and set frames from that.

Parameters

file	File in VFS. JSON file must be an array.

Returns

True if successful.

Definition at line 71 of file Animation.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

set_frames() [1/2]

void galaxy::graphics::Animation::set_frames

(

const nlohmann::json &

json

)

Loads frames from json object.

Parameters

json	Must be an array of json objects.

Definition at line 88 of file Animation.cpp.

Here is the caller graph for this function:

set_frames() [2/2]

void galaxy::graphics::Animation::set_frames

(

const meta::vector< Frame > &

frames

)

Set from an existing vector of frames.

Parameters

frames

List of frames to use for this animation.

Definition at line 101 of file Animation.cpp.

Here is the call graph for this function:

next()

void galaxy::graphics::Animation::next

(

)

Advance to the next frame.

Definition at line 106 of file Animation.cpp.

Here is the caller graph for this function:

prev()

void galaxy::graphics::Animation::prev

(

)

Go back to the previous frame.

Definition at line 116 of file Animation.cpp.

Here is the caller graph for this function:

restart()

void galaxy::graphics::Animation::restart

(

)

Sets animation back to beginning.

Definition at line 126 of file Animation.cpp.

Here is the caller graph for this function:

current()

Frame & galaxy::graphics::Animation::current ( )

nodiscard

Get currently active frame.

Returns

Reference to active frame.

Definition at line 131 of file Animation.cpp.

Here is the caller graph for this function:

total()

std::size_t galaxy::graphics::Animation::total ( ) const

nodiscard

Get total frames.

Returns

std::size_t.

Definition at line 136 of file Animation.cpp.

Here is the caller graph for this function:

index()

std::size_t galaxy::graphics::Animation::index ( ) const

nodiscard

Get current frame index.

Returns

std::size_t.

Definition at line 141 of file Animation.cpp.

Here is the caller graph for this function:

frames()

meta::vector< Frame > & galaxy::graphics::Animation::frames ( )

nodiscard

Get the frames.

Returns

Reference to frame list.

Definition at line 146 of file Animation.cpp.

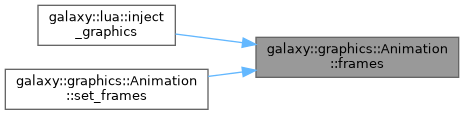

Here is the caller graph for this function:

Member Data Documentation

m_speed

double galaxy::graphics::Animation::m_speed

Speed of the animation. Multiplier, so 1.0f is regular speed.

Definition at line 136 of file Animation.hpp.

m_name

std::string galaxy::graphics::Animation::m_name

Animation name.

Definition at line 141 of file Animation.hpp.

m_index

std::size_t galaxy::graphics::Animation::m_index

private

Index of the current active frame.

Definition at line 147 of file Animation.hpp.

m_frames

meta::vector<Frame> galaxy::graphics::Animation::m_frames

private

Frames belonging to this animation.

Definition at line 152 of file Animation.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/graphics/anim/Animation.hpp
• galaxy/src/galaxy/graphics/anim/Animation.cpp
