A finite state machine. More...

#include <StateMachine.hpp>

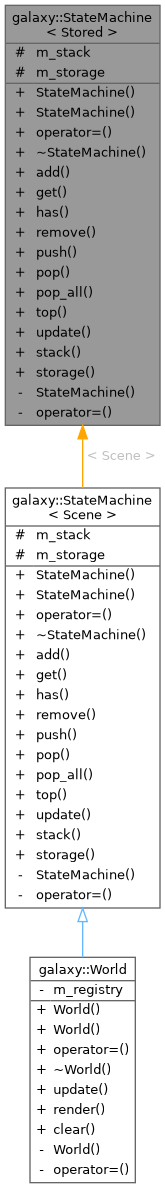

Inheritance diagram for galaxy::StateMachine< Stored >:

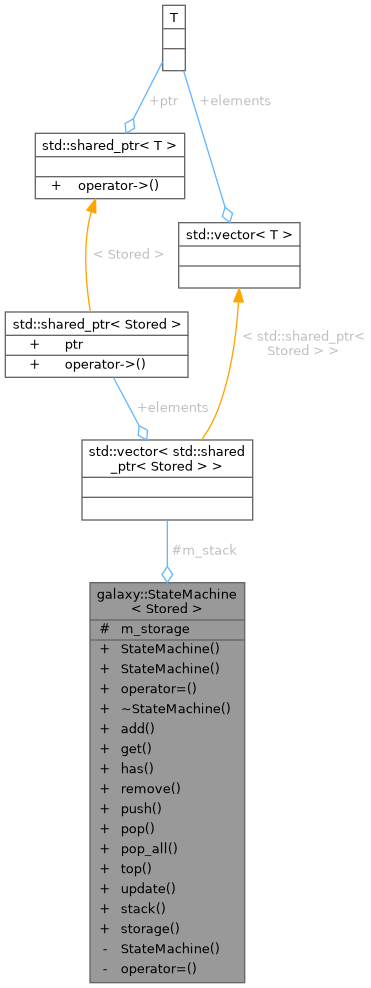

Collaboration diagram for galaxy::StateMachine< Stored >:

Public Member Functions
	StateMachine () noexcept
	Constructor.

	StateMachine (StateMachine< Stored > &&)
	Move constructor.

StateMachine< Stored > &	operator= (StateMachine< Stored > &&)
	Move assignment operator.

virtual	~StateMachine ()
	Destructor.

template<typename... Args>
std::shared_ptr< Stored >	add (const std::string &key, Args &&... args)
	Add a new state.

std::shared_ptr< Stored >	get (const std::string &key) noexcept
	Get a specific state.

bool	has (const std::string &key) noexcept
	Does a state exist.

void	remove (const std::string &key)
	Remove a specific state.

void	push (const std::string &key) noexcept
	Push a state onto the top of stack.

void	pop () noexcept
	Remove state on top of stack.

void	pop_all () noexcept
	Remove all states in stack.

std::shared_ptr< Stored >	top () const noexcept
	Get top state in stack.

virtual void	update ()=0
	Process events and updates.

Stack &	stack () noexcept
	Get stack.

Map &	storage () noexcept
	Get storage.

Protected Attributes
Stack	m_stack
	State stack.

Map	m_storage
	State cache.

Private Types
using	Stack = std::vector<std::shared_ptr<Stored>>
	We specifically use a std::vector for our stack.

using	Map = ankerl::unordered_dense::map<std::uint64_t, std::shared_ptr<Stored>>
	Use a dense map for storage.

Private Member Functions
	StateMachine (const StateMachine< Stored > &)=delete
	Copy constructor.

StateMachine< Stored > &	operator= (const StateMachine< Stored > &)=delete
	Copy assignment operator.

Detailed Description

template<std::derived_from< State > Stored>
class galaxy::StateMachine< Stored >

A finite state machine.

https://gameprogrammingpatterns.com/state.html

Template Parameters

Stored Object type being used in the state machine.

Definition at line 27 of file StateMachine.hpp.

Member Typedef Documentation

◆ Stack

template<std::derived_from< State > Stored>

using galaxy::StateMachine< Stored >::Stack = std::vector<std::shared_ptr<Stored>>

private

We specifically use a std::vector for our stack.

Definition at line 32 of file StateMachine.hpp.

◆ Map

template<std::derived_from< State > Stored>

using galaxy::StateMachine< Stored >::Map = ankerl::unordered_dense::map<std::uint64_t, std::shared_ptr<Stored>>

private

Use a dense map for storage.

Definition at line 37 of file StateMachine.hpp.

Constructor & Destructor Documentation

◆ StateMachine() [1/3]

template<std::derived_from< State > Stored>

galaxy::StateMachine< Stored >::StateMachine ( )

noexcept

Constructor.

Definition at line 173 of file StateMachine.hpp.

◆ StateMachine() [2/3]

template<std::derived_from< State > Stored>

galaxy::StateMachine< Stored >::StateMachine ( StateMachine< Stored > && sm )

inline

Move constructor.

Definition at line 178 of file StateMachine.hpp.

◆ ~StateMachine()

template<std::derived_from< State > Stored>

galaxy::StateMachine< Stored >::~StateMachine ( )

inlinevirtual

Destructor.

Definition at line 197 of file StateMachine.hpp.

Here is the call graph for this function:

◆ StateMachine() [3/3]

template<std::derived_from< State > Stored>

galaxy::StateMachine< Stored >::StateMachine ( const StateMachine< Stored > & )

privatedelete

Copy constructor.

Member Function Documentation

◆ operator=() [1/2]

template<std::derived_from< State > Stored>

StateMachine< Stored > & galaxy::StateMachine< Stored >::operator= ( StateMachine< Stored > && sm )

inline

Move assignment operator.

Definition at line 185 of file StateMachine.hpp.

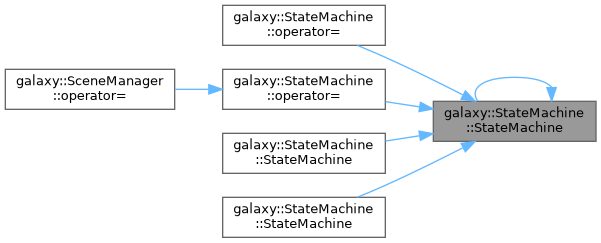

Here is the caller graph for this function:

◆ add()

template<std::derived_from< State > Stored>

template<typename... Args>

std::shared_ptr< Stored > galaxy::StateMachine< Stored >::add	(	const std::string &	key,
		Args &&...	args )

inline

Add a new state.

Template Parameters

Args	Constructor arguments for state.

Parameters

key	Name to assign to this state.
args	Variable arguments for state constructor.

Returns: Shared pointer to added scene.

Definition at line 207 of file StateMachine.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get()

template<std::derived_from< State > Stored>

std::shared_ptr< Stored > galaxy::StateMachine< Stored >::get ( const std::string & key )

inlinenodiscardnoexcept

Get a specific state.

Parameters

key	Name of state.

Returns: Shared pointer to scene.

Definition at line 224 of file StateMachine.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ has()

template<std::derived_from< State > Stored>

bool galaxy::StateMachine< Stored >::has ( const std::string & key )

inlinenodiscardnoexcept

Does a state exist.

Parameters

key	Name of state.

Returns: True if exists.

Definition at line 240 of file StateMachine.hpp.

Here is the call graph for this function:

◆ remove()

template<std::derived_from< State > Stored>

void galaxy::StateMachine< Stored >::remove ( const std::string & key )

inline

Remove a specific state.

Will fail if state is in stack.

Parameters

key	Name of state.

Definition at line 247 of file StateMachine.hpp.

Here is the call graph for this function:

◆ push()

template<std::derived_from< State > Stored>

void galaxy::StateMachine< Stored >::push ( const std::string & key )

inlinenoexcept

Push a state onto the top of stack.

Parameters

key	Name of state.

Definition at line 263 of file StateMachine.hpp.

Here is the call graph for this function:

◆ pop()

template<std::derived_from< State > Stored>

void galaxy::StateMachine< Stored >::pop ( )

inlinenoexcept

Remove state on top of stack.

Definition at line 277 of file StateMachine.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pop_all()

template<std::derived_from< State > Stored>

void galaxy::StateMachine< Stored >::pop_all ( )

inlinenoexcept

Remove all states in stack.

Definition at line 292 of file StateMachine.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ top()

template<std::derived_from< State > Stored>

std::shared_ptr< Stored > galaxy::StateMachine< Stored >::top ( ) const

inlinenodiscardnoexcept

Get top state in stack.

Returns: Shared pointer to top state.

Definition at line 301 of file StateMachine.hpp.

Here is the caller graph for this function:

◆ update()

template<std::derived_from< State > Stored>

virtual void galaxy::StateMachine< Stored >::update ( )

pure virtual

Process events and updates.

Implemented in galaxy::World.

◆ stack()

template<std::derived_from< State > Stored>

StateMachine< Stored >::Stack & galaxy::StateMachine< Stored >::stack ( )

inlinenodiscardnoexcept

Get stack.

Returns: Reference.

Definition at line 312 of file StateMachine.hpp.

◆ storage()

template<std::derived_from< State > Stored>

StateMachine< Stored >::Map & galaxy::StateMachine< Stored >::storage ( )

inlinenodiscardnoexcept

Get storage.

Returns: Reference.

Definition at line 318 of file StateMachine.hpp.

◆ operator=() [2/2]

template<std::derived_from< State > Stored>

StateMachine< Stored > & galaxy::StateMachine< Stored >::operator= ( const StateMachine< Stored > & )

privatedelete

Copy assignment operator.

Member Data Documentation

◆ m_stack

template<std::derived_from< State > Stored>

Stack galaxy::StateMachine< Stored >::m_stack

protected

State stack.

Definition at line 153 of file StateMachine.hpp.

◆ m_storage

template<std::derived_from< State > Stored>

Map galaxy::StateMachine< Stored >::m_storage

protected

State cache.

Definition at line 158 of file StateMachine.hpp.

The documentation for this class was generated from the following file:

galaxy/src/galaxy/state/StateMachine.hpp
