galaxy::graphics::Sharpen Class Reference

Sharpening effect. More...

#include <Sharpen.hpp>

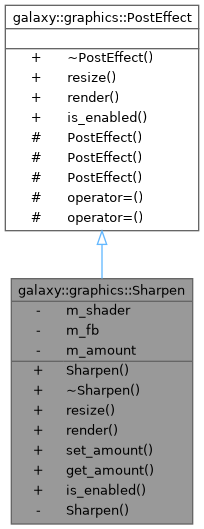

Inheritance diagram for galaxy::graphics::Sharpen:

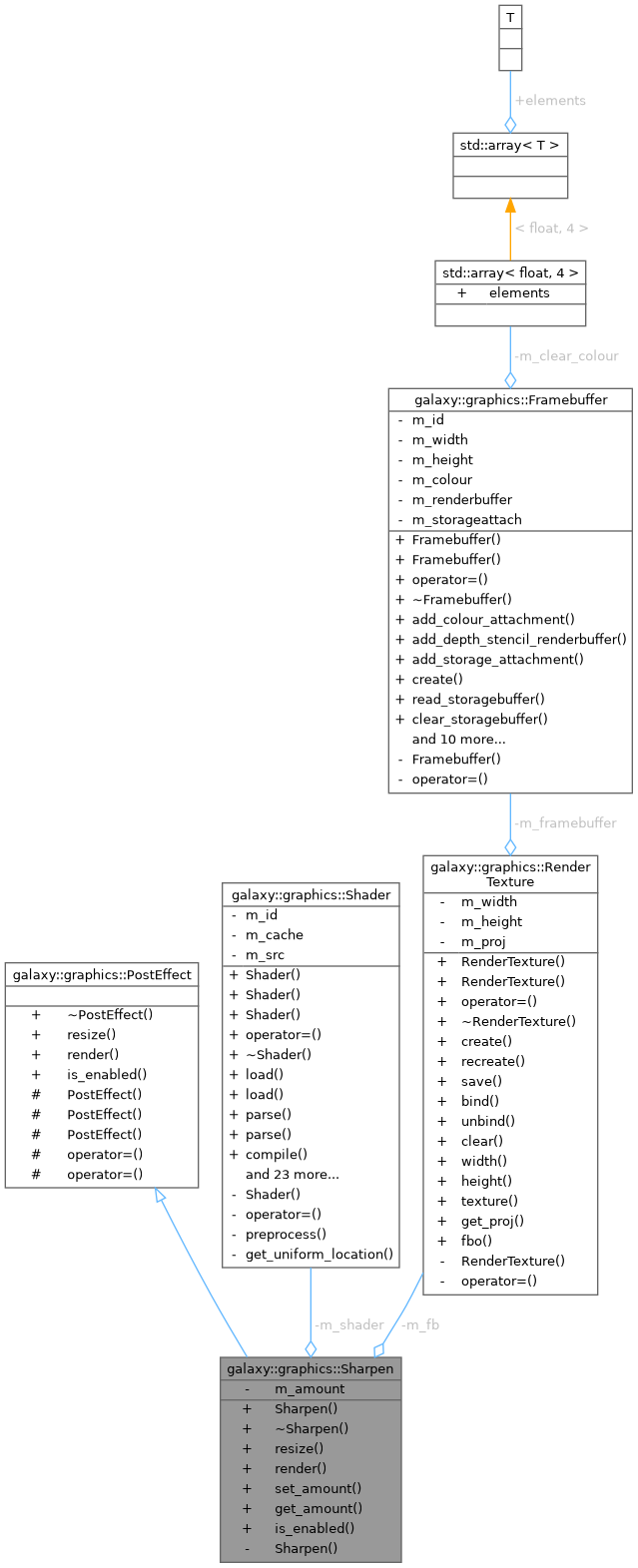

Collaboration diagram for galaxy::graphics::Sharpen:

Public Member Functions
	Sharpen (const int width, const int height)
	Argument constructor.
virtual	~Sharpen ()=default
	Destructor.
void	resize (const int width, const int height) override
	Resize framebuffers.
unsigned int	render (const unsigned int input) override
	Render effect to input texture.
void	set_amount (const float amount)
	Set sharpening amount.
float	get_amount () const
	Get sharpening amount.
bool	is_enabled () override
	Is this effect enabled?
Public Member Functions inherited from galaxy::graphics::PostEffect
virtual	~PostEffect ()=default
	Destructor.

Private Member Functions
	Sharpen ()=delete
	Constructor.

Private Attributes
Shader	m_shader
	Shader for post processing effect.
RenderTexture	m_fb
	Framebuffer to render effect to.
float	m_amount
	Sharpening amount.

Additional Inherited Members
Protected Member Functions inherited from galaxy::graphics::PostEffect
	PostEffect ()=default
	Constructor.
	PostEffect (const PostEffect &)=default
	Copy constructor.
	PostEffect (PostEffect &&)=default
	Move constructor.
PostEffect &	operator= (const PostEffect &)=default
	Copy assignment operator.
PostEffect &	operator= (PostEffect &&)=default
	Move assignment operator.

Detailed Description

Sharpening effect.

Run after Anti-Aliasing.

Definition at line 24 of file Sharpen.hpp.

Constructor & Destructor Documentation

Sharpen() [1/2]

galaxy::graphics::Sharpen::Sharpen	(	const int	width,
		const int	height )

Argument constructor.

Parameters

width	Width of internal framebuffer.
height	Height of internal framebuffer.

Definition at line 96 of file Sharpen.cpp.

Here is the call graph for this function:

~Sharpen()

virtual galaxy::graphics::Sharpen::~Sharpen ( )

virtualdefault

Destructor.

Sharpen() [2/2]

galaxy::graphics::Sharpen::Sharpen ( )

privatedelete

Constructor.

Member Function Documentation

resize()

void galaxy::graphics::Sharpen::resize ( const int width, const int height )

overridevirtual

Resize framebuffers.

Parameters

width	New width of internal framebuffer.
height	New height of internal framebuffer.

Implements galaxy::graphics::PostEffect.

Definition at line 109 of file Sharpen.cpp.

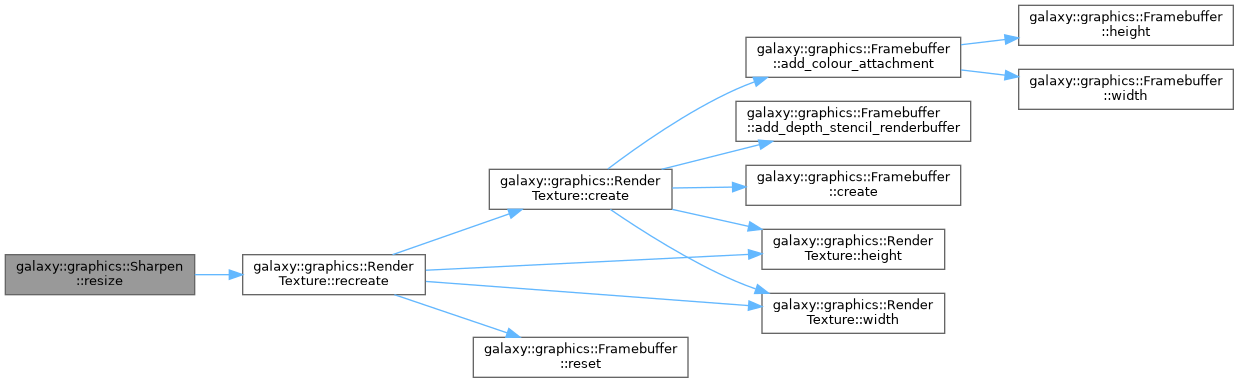

Here is the call graph for this function:

render()

unsigned int galaxy::graphics::Sharpen::render ( const unsigned int input )

nodiscardoverridevirtual

Render effect to input texture.

Parameters

input

Input texture from previous effect or window framebuffer.

Returns

Returns output texture for next effect or final framebuffer.

Implements galaxy::graphics::PostEffect.

Definition at line 114 of file Sharpen.cpp.

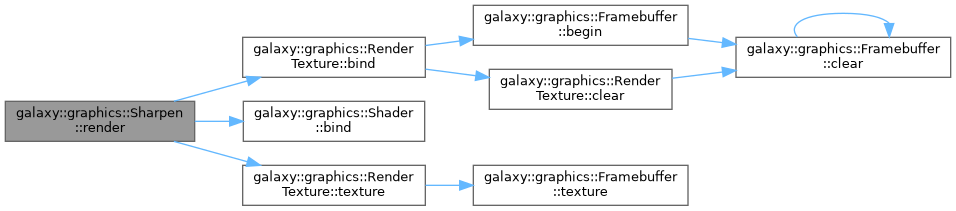

Here is the call graph for this function:

set_amount()

void galaxy::graphics::Sharpen::set_amount

(

const float

amount

)

Set sharpening amount.

Parameters

amount

0.0 - 10.0.

Definition at line 126 of file Sharpen.cpp.

Here is the call graph for this function:

get_amount()

float galaxy::graphics::Sharpen::get_amount ( ) const

nodiscard

Get sharpening amount.

Returns

Float.

Definition at line 132 of file Sharpen.cpp.

is_enabled()

bool galaxy::graphics::Sharpen::is_enabled ( )

nodiscardoverridevirtual

Is this effect enabled?

Returns

True if effect is enabled. Otherwise false.

Implements galaxy::graphics::PostEffect.

Definition at line 137 of file Sharpen.cpp.

Member Data Documentation

m_shader

Shader galaxy::graphics::Sharpen::m_shader

private

Shader for post processing effect.

Definition at line 91 of file Sharpen.hpp.

m_fb

RenderTexture galaxy::graphics::Sharpen::m_fb

private

Framebuffer to render effect to.

Definition at line 96 of file Sharpen.hpp.

m_amount

float galaxy::graphics::Sharpen::m_amount

private

Sharpening amount.

Definition at line 101 of file Sharpen.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/graphics/post/Sharpen.hpp
• galaxy/src/galaxy/graphics/post/Sharpen.cpp
