galaxy::graphics::VertexArray Class Reference

Abstraction for OpenGL vertex array objects. More...

#include <VertexArray.hpp>

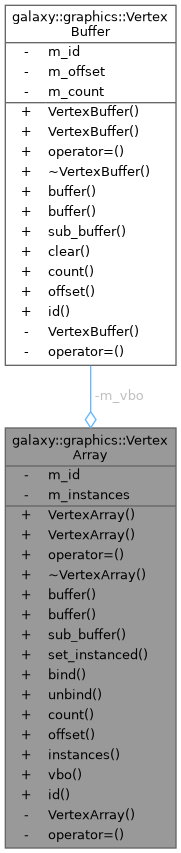

Collaboration diagram for galaxy::graphics::VertexArray:

Public Member Functions
	VertexArray ()
	Constructor.
	VertexArray (VertexArray &&)
	Move constructor.
VertexArray &	operator= (VertexArray &&)
	Move assignment operator.
	~VertexArray ()
	Destructor.
void	buffer (std::span< Vertex > vertices, std::span< unsigned int > indicies)
	Create vertex array object.
void	buffer (const int vertex_count, std::span< unsigned int > indicies)
	Create vertex array without uploading data.
void	sub_buffer (const unsigned int index, std::span< Vertex > vertices)
	Sub-buffer vertex array.
void	set_instanced (const InstanceBuffer &ib)
	Set this vertex array to use a specific instance buffer.
void	bind ()
	Bind this vertex array.
void	unbind ()
	Unbind this vertex array.
int	count () const
	Get the index count.
void *	offset ()
	Gets index offset.
int	instances () const
	Number of instances to render.
VertexBuffer &	vbo ()
	Get vertex buffer.
unsigned int	id () const
	Get vertex array handle.

Private Member Functions
	VertexArray (const VertexArray &)=delete
	Copy constructor.
VertexArray &	operator= (const VertexArray &)=delete
	Copy assignment operator.

Private Attributes
unsigned int	m_id
	VAO object.
VertexBuffer	m_vbo
	Vertex buffer.
int	m_instances
	Number of instances.

Detailed Description

Abstraction for OpenGL vertex array objects.

Definition at line 21 of file VertexArray.hpp.

Constructor & Destructor Documentation

VertexArray() [1/3]

galaxy::graphics::VertexArray::VertexArray

(

)

Constructor.

Definition at line 18 of file VertexArray.cpp.

VertexArray() [2/3]

galaxy::graphics::VertexArray::VertexArray

(

VertexArray &&

v

)

Move constructor.

Definition at line 25 of file VertexArray.cpp.

~VertexArray()

galaxy::graphics::VertexArray::~VertexArray

(

)

Destructor.

Definition at line 58 of file VertexArray.cpp.

VertexArray() [3/3]

galaxy::graphics::VertexArray::VertexArray ( const VertexArray & )

privatedelete

Copy constructor.

Member Function Documentation

operator=() [1/2]

VertexArray & galaxy::graphics::VertexArray::operator=

(

VertexArray &&

v

)

Move assignment operator.

Definition at line 39 of file VertexArray.cpp.

buffer() [1/2]

void galaxy::graphics::VertexArray::buffer	(	std::span< Vertex >	vertices,
		std::span< unsigned int >	indicies )

Create vertex array object.

Parameters

vertices	Vertices to assign.
indicies	Indices for vertex buffer.

Definition at line 66 of file VertexArray.cpp.

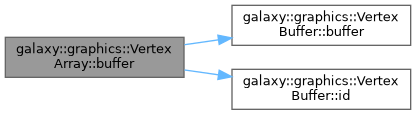

Here is the call graph for this function:

Here is the caller graph for this function:

buffer() [2/2]

void galaxy::graphics::VertexArray::buffer	(	const int	vertex_count,
		std::span< unsigned int >	indicies )

Create vertex array without uploading data.

Parameters

vertex_count	Size of vertices.
indicies	Indices for vertex buffer.

Definition at line 86 of file VertexArray.cpp.

Here is the call graph for this function:

sub_buffer()

void galaxy::graphics::VertexArray::sub_buffer	(	const unsigned int	index,
		std::span< Vertex >	vertices )

Sub-buffer vertex array.

Parameters

index	Offset to start at from initial vertices. 0 = first element.
vertices	Vertices to assign.

Definition at line 106 of file VertexArray.cpp.

Here is the call graph for this function:

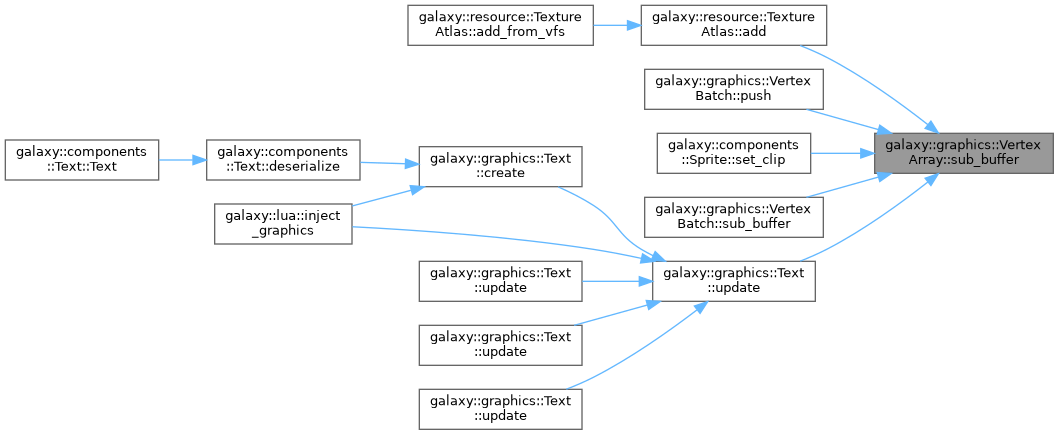

Here is the caller graph for this function:

set_instanced()

void galaxy::graphics::VertexArray::set_instanced

(

const InstanceBuffer &

ib

)

Set this vertex array to use a specific instance buffer.

Parameters

ib	Instance buffer to use. Does not take ownership, you need to keep it around.

Definition at line 111 of file VertexArray.cpp.

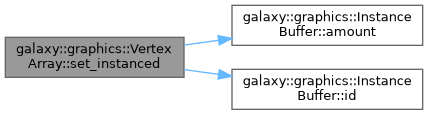

Here is the call graph for this function:

bind()

void galaxy::graphics::VertexArray::bind

(

)

Bind this vertex array.

Definition at line 138 of file VertexArray.cpp.

Here is the caller graph for this function:

unbind()

void galaxy::graphics::VertexArray::unbind

(

)

Unbind this vertex array.

Definition at line 143 of file VertexArray.cpp.

count()

int galaxy::graphics::VertexArray::count ( ) const

nodiscard

Get the index count.

Returns

Integer.

Definition at line 148 of file VertexArray.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

offset()

void * galaxy::graphics::VertexArray::offset ( )

nodiscard

Gets index offset.

Returns

Integer as void pointer for opengl shenanigans.

Definition at line 153 of file VertexArray.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

instances()

int galaxy::graphics::VertexArray::instances ( ) const

nodiscard

Number of instances to render.

Returns

Integer.

Definition at line 158 of file VertexArray.cpp.

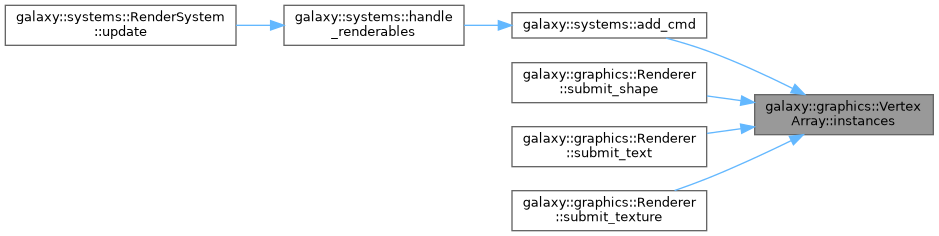

Here is the caller graph for this function:

vbo()

VertexBuffer & galaxy::graphics::VertexArray::vbo ( )

nodiscard

Get vertex buffer.

Returns

Reference to vertex buffer object.

Definition at line 163 of file VertexArray.cpp.

Here is the caller graph for this function:

id()

unsigned int galaxy::graphics::VertexArray::id ( ) const

nodiscard

Get vertex array handle.

Returns

Unsigned int.

Definition at line 168 of file VertexArray.cpp.

Here is the caller graph for this function:

operator=() [2/2]

VertexArray & galaxy::graphics::VertexArray::operator= ( const VertexArray & )

privatedelete

Copy assignment operator.

Member Data Documentation

m_id

unsigned int galaxy::graphics::VertexArray::m_id

private

VAO object.

Definition at line 140 of file VertexArray.hpp.

m_vbo

VertexBuffer galaxy::graphics::VertexArray::m_vbo

private

Vertex buffer.

Definition at line 145 of file VertexArray.hpp.

m_instances

int galaxy::graphics::VertexArray::m_instances

private

Number of instances.

Definition at line 150 of file VertexArray.hpp.

---

The documentation for this class was generated from the following files:

• galaxy/src/galaxy/graphics/gl/VertexArray.hpp
• galaxy/src/galaxy/graphics/gl/VertexArray.cpp
