Parses raw texture files and stiches them into a large altas. More...

#include <TextureAtlas.hpp>

Collaboration diagram for galaxy::resource::TextureAtlas:

Classes
struct	Info
	Information about textures stored in atlas. More...

struct	Sheet
	A sheet of textures in the atlas. More...

Public Member Functions
	TextureAtlas ()
	Constructor.

virtual	~TextureAtlas ()
	Destructor.

void	add (const std::string &file)
	Add a single file.

void	add_from_vfs ()
	Loads all atlas textures in the vfs.

void	save ()
	Save all created atlas' to disk.

void	clear ()
	Clear all data.

bool	contains (const std::string &key)
	Check if atlas contains a texture.

meta::optional_ref< Info >	query (const std::string &key)
	Get data about texture in atlas.

meta::vector< std::string >	keys ()
	Get a list of keys in the cache.

Static Public Member Functions
template<meta::is_arithmetic Type>
static float	map_x_texel (const Type x, const Type width)
	Takes in a x positon texture coord and maps it to a texel.

template<meta::is_arithmetic Type>
static float	map_y_texel (const Type y, const Type height)
	Takes in a y positon texture coord and maps it to a texel.

Private Member Functions
	TextureAtlas (TextureAtlas &&)=delete
	Move constructor.

TextureAtlas &	operator= (TextureAtlas &&)=delete
	Move assignment operator.

	TextureAtlas (const TextureAtlas &)=delete
	Copy constructor.

TextureAtlas &	operator= (const TextureAtlas &)=delete
	Copy assignment operator.

void	init ()
	Initialize atlas.

Private Attributes
int	m_max_bindings
	Max number of active textures allowed.

int	m_size
	Maxinum size of an atlas texture.

meta::vector< std::unique_ptr< Sheet > >	m_sheets
	Texture atlas sheets.

robin_hood::unordered_flat_map< std::string, Info >	m_data
	Index'd list of textures on a sheet.

graphics::VertexArray	m_vao
	Default vertex array to use when building an atlas.

components::Transform	m_transform
	Default transform to use when building an atlas.

Detailed Description

Parses raw texture files and stiches them into a large altas.

Definition at line 29 of file TextureAtlas.hpp.

Constructor & Destructor Documentation

◆ TextureAtlas() [1/3]

galaxy::resource::TextureAtlas::TextureAtlas ( )

Constructor.

Definition at line 23 of file TextureAtlas.cpp.

Here is the call graph for this function:

◆ ~TextureAtlas()

galaxy::resource::TextureAtlas::~TextureAtlas ( )

virtual

Destructor.

Definition at line 30 of file TextureAtlas.cpp.

Here is the call graph for this function:

◆ TextureAtlas() [2/3]

galaxy::resource::TextureAtlas::TextureAtlas ( TextureAtlas && )

privatedelete

Move constructor.

◆ TextureAtlas() [3/3]

galaxy::resource::TextureAtlas::TextureAtlas ( const TextureAtlas & )

privatedelete

Copy constructor.

Member Function Documentation

◆ add()

void galaxy::resource::TextureAtlas::add ( const std::string & file )

Add a single file.

Parameters

file	Texture file in the vfs to add to atlas.

Definition at line 35 of file TextureAtlas.cpp.

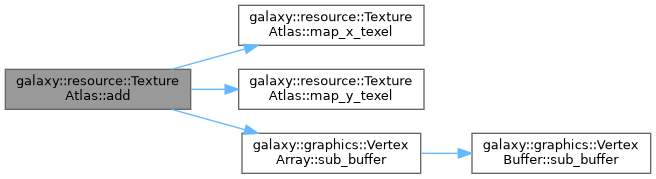

Here is the call graph for this function:

Here is the caller graph for this function:

◆ add_from_vfs()

void galaxy::resource::TextureAtlas::add_from_vfs ( )

Loads all atlas textures in the vfs.

Definition at line 138 of file TextureAtlas.cpp.

Here is the call graph for this function:

◆ save()

void galaxy::resource::TextureAtlas::save ( )

Save all created atlas' to disk.

WARNING: This function will slow down the more atlas' there are to save.

Definition at line 148 of file TextureAtlas.cpp.

◆ clear()

void galaxy::resource::TextureAtlas::clear ( )

Clear all data.

Definition at line 159 of file TextureAtlas.cpp.

Here is the call graph for this function:

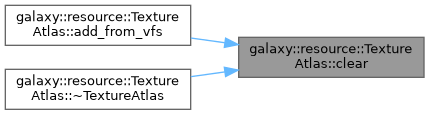

Here is the caller graph for this function:

◆ contains()

bool galaxy::resource::TextureAtlas::contains ( const std::string & key )

nodiscard

Check if atlas contains a texture.

Parameters

key	Identifier of texture to look for.

Returns: True if found.

Definition at line 168 of file TextureAtlas.cpp.

Here is the caller graph for this function:

◆ query()

meta::optional_ref< TextureAtlas::Info > galaxy::resource::TextureAtlas::query ( const std::string & key )

nodiscard

Get data about texture in atlas.

Parameters

key	Identifier of texture to query.

Returns: TextureAtlas::Info, as an optional reference.

Definition at line 173 of file TextureAtlas.cpp.

Here is the call graph for this function:

◆ map_x_texel()

template<meta::is_arithmetic Type>

float galaxy::resource::TextureAtlas::map_x_texel	(	const Type	x,
		const Type	width )

inlinestaticnodiscard

Takes in a x positon texture coord and maps it to a texel.

Template Parameters

Type	Type of the variable.

Parameters

x	Position of texture coord.
width	Texture width.

Returns: OpenGL shader compatible texel.

Definition at line 233 of file TextureAtlas.hpp.

Here is the caller graph for this function:

◆ map_y_texel()

template<meta::is_arithmetic Type>

float galaxy::resource::TextureAtlas::map_y_texel	(	const Type	y,
		const Type	height )

inlinestaticnodiscard

Takes in a y positon texture coord and maps it to a texel.

Template Parameters

Type	Type of the variable.

Parameters

y	Position of texture coord.
height	Texture height.

Returns: OpenGL shader compatible texel.

Definition at line 246 of file TextureAtlas.hpp.

Here is the caller graph for this function:

◆ keys()

meta::vector< std::string > galaxy::resource::TextureAtlas::keys ( )

nodiscard

Get a list of keys in the cache.

Returns: A vector of strings.

Definition at line 185 of file TextureAtlas.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [1/2]

TextureAtlas & galaxy::resource::TextureAtlas::operator= ( TextureAtlas && )

privatedelete

Move assignment operator.

◆ operator=() [2/2]

TextureAtlas & galaxy::resource::TextureAtlas::operator= ( const TextureAtlas & )

privatedelete

Copy assignment operator.

◆ init()

void galaxy::resource::TextureAtlas::init ( )

private

Initialize atlas.

Definition at line 198 of file TextureAtlas.cpp.

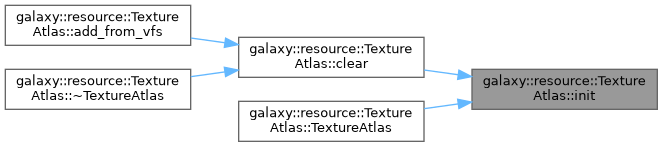

Here is the caller graph for this function:

Member Data Documentation

◆ m_max_bindings

int galaxy::resource::TextureAtlas::m_max_bindings

private

Max number of active textures allowed.

Definition at line 204 of file TextureAtlas.hpp.

◆ m_size

int galaxy::resource::TextureAtlas::m_size

private

Maxinum size of an atlas texture.

Definition at line 209 of file TextureAtlas.hpp.

◆ m_sheets

meta::vector<std::unique_ptr<Sheet> > galaxy::resource::TextureAtlas::m_sheets

private

Texture atlas sheets.

Definition at line 214 of file TextureAtlas.hpp.

◆ m_data

robin_hood::unordered_flat_map<std::string, Info> galaxy::resource::TextureAtlas::m_data

private

Index'd list of textures on a sheet.

Definition at line 219 of file TextureAtlas.hpp.

◆ m_vao

graphics::VertexArray galaxy::resource::TextureAtlas::m_vao

private

Default vertex array to use when building an atlas.

Definition at line 224 of file TextureAtlas.hpp.

◆ m_transform

components::Transform galaxy::resource::TextureAtlas::m_transform

private

Default transform to use when building an atlas.

Definition at line 229 of file TextureAtlas.hpp.

The documentation for this class was generated from the following files:

galaxy/src/galaxy/graphics/TextureAtlas.hpp
galaxy/src/galaxy/graphics/TextureAtlas.cpp
